Cassini Project Manager Earl Maize waits for Cassini's signal with the spacecraft's operations team in mission control at JPL on April 26, 2017.
NASA/JPL-Caltech › Full Image
As NASA's Cassini spacecraft prepares to shoot the narrow gap between Saturn and its rings for the second time in its Grand Finale, Cassini engineers are delighted, while ring scientists are puzzled, that the region appears to be relatively dust-free. This assessment is based on data Cassini collected during its first dive through the region on April 26.
With this information in hand, the Cassini team will now move forward with its preferred plan of science observations.
"The region between the rings and Saturn is 'the big empty,' apparently," said Cassini Project Manager Earl Maize of NASA's Jet Propulsion Laboratory in Pasadena, California. "Cassini will stay the course, while the scientists work on the mystery of why the dust level is much lower than expected."
A dustier environment in the gap might have meant the spacecraft's saucer-shaped main antenna would be needed as a shield during most future dives through the ring plane. This would have forced changes to how and when Cassini's instruments would be able to make observations. Fortunately, it appears that the "plan B" option is no longer needed. (There are 21 dives remaining. Four of them pass through the innermost fringes of Saturn's rings, necessitating that the antenna be used as a shield on those orbits.)
Based on images from Cassini, models of the ring particle environment in the approximately 1,200-mile-wide (2,000-kilometer-wide) region between Saturn and its rings suggested the area would not have large particles that would pose a danger to the spacecraft.
But because no spacecraft had ever passed through the region before, Cassini engineers oriented the spacecraft so that its 13-foot-wide (4-meter-wide) antenna pointed in the direction of oncoming ring particles, shielding its delicate instruments as a protective measure during its April 26 dive.
Cassini's Radio and Plasma Wave Science (RPWS) instrument was one of two science instruments with sensors that poke out from the protective shield of the antenna (the other being Cassini's magnetometer). RPWS detected the hits of hundreds of ring particles per second when it crossed the ring plane just outside of Saturn's main rings, but only detected a few pings on April 26.
This video represents data collected by the Radio and Plasma Wave Science instrument on NASA's Cassini spacecraft, as it crossed the plane of Saturn's rings on Dec. 18, 2016. The instrument is able to record ring particles striking the spacecraft in its data.
This video represents data collected by the Radio and Plasma Wave Science instrument on NASA's Cassini spacecraft, as it crossed through the gap between Saturn and its rings on April 26, 2017, during the first dive of the mission's Grand Finale.
When RPWS data are converted to an audio format, dust particles hitting the instrument's antennas sound like pops and cracks, covering up the usual whistles and squeaks of waves in the charged particle environment that the instrument is designed to detect. The RPWS team expected to hear a lot of pops and cracks on crossing the ring plane inside the gap, but instead, the whistles and squeaks came through surprisingly clearly on April 26.
"It was a bit disorienting -- we weren't hearing what we expected to hear," said William Kurth, RPWS team lead at the University of Iowa, Iowa City. "I've listened to our data from the first dive several times and I can probably count on my hands the number of dust particle impacts I hear."
The team's analysis suggests Cassini only encountered a few particles as it crossed the gap -- none larger than those in smoke (about 1 micron across).
Cassini will next cross through the ring plane Tuesday, May 2, at 12:38 p.m. PDT (3:38 p.m. EDT) in a region very close to where it passed on the previous dive. During this orbit, in advance of the crossing, Cassini's cameras have been looking closely at the rings; in addition, the spacecraft has rotated (or "rolled") faster than engineers have ever allowed it to before, in order to calibrate the magnetometer. As with the first finale dive, Cassini will be out of contact during closest approach to Saturn, and is scheduled to transmit data from this dive on May 3.
More information about Cassini's Grand Finale, including images and video, is available at:
The Cassini-Huygens mission is a cooperative project of NASA, ESA (European Space Agency) and the Italian Space Agency. NASA's Jet Propulsion Laboratory, a division of Caltech in Pasadena, manages the mission for NASA's Science Mission Directorate, Washington. JPL designed, developed and assembled the Cassini orbiter.
More information about Cassini:
Preston Dyches
Jet Propulsion Laboratory, Pasadena, Calif.
818-354-7013
preston.dyches@jpl.nasa.gov
Written by Jia-Rui Cook and Preston Dyches

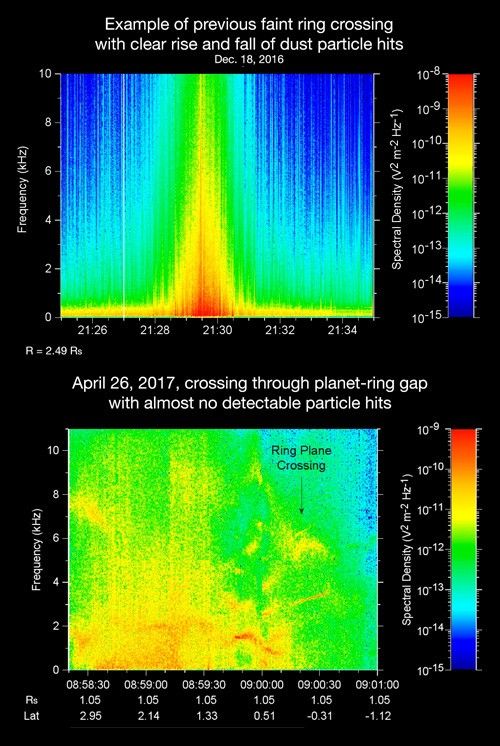

The sounds and spectrograms in these two videos represent data collected by the Radio and Plasma Wave Science, or RPWS, instrument on NASA's Cassini spacecraft, as it crossed the plane of Saturn's rings on two separate orbits.
NASA/JPL-Caltech/University of Iowa
