Table Mountain Facility Sends DSOC Laser Beacon to NASA’s Psyche (Infrared Image)

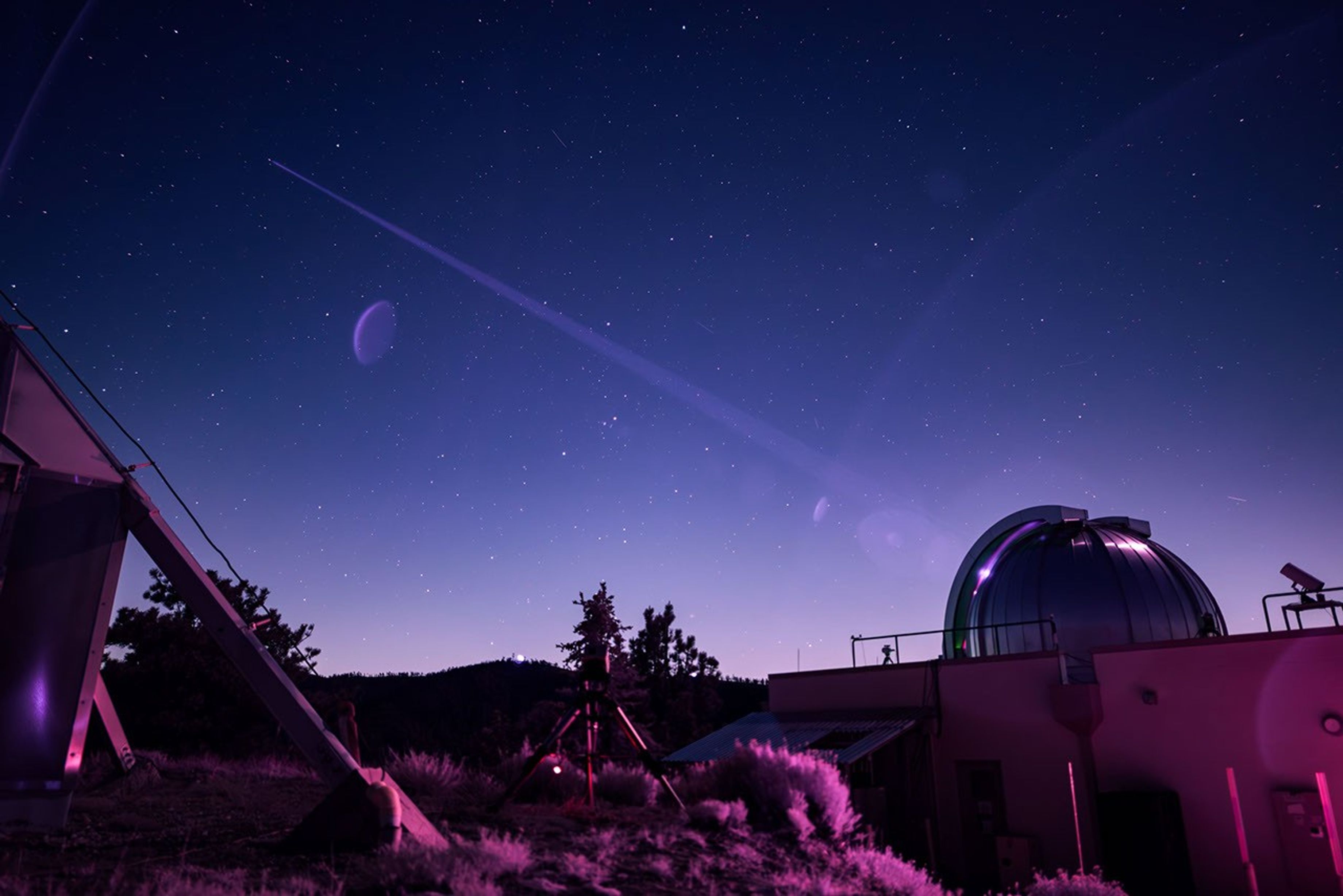

In this infrared photograph, the Optical Communications Telescope Laboratory at NASA JPL's Table Mountain Facility, beams its laser beacon to the DSOC flight laser transceiver aboard NASA's Psyche spacecraft.
PIA26661
Credits: NASA/JPL-Caltech
Image Addition Date:
Mission(s):
Spacecraft(s):

Description

In this infrared photograph, the Optical Communications Telescope Laboratory (OCTL) at NASA Jet Propulsion Laboratory's Table Mountain Facility near Wrightwood, California, beams its eight-laser beacon (at a total power of 1.4 kilowatts) to the Deep Space Optical Communications (DSOC) flight laser transceiver aboard NASA's Psyche spacecraft. The photo was taken on June 2, 2025, when Psyche was about 143 million miles (230 million kilometers) from Earth.

The faint purple crescent just left of center and near the laser beam is a lens flare caused by a bright light (out of frame) reflecting inside the camera lens.

As the experiment's ground laser transmitter, OCTL transmits at an infrared wavelength of 1,064 nanometers from its 3.3-foot-aperture (1-meter) telescope. The telescope can also receive faint infrared photons (at a wavelength of 1,550 nanometers) from the 4-watt flight laser transceiver on Psyche. Neither infrared wavelength is easily absorbed or scattered by Earth's atmosphere, making both ideal for deep space optical communications.

To receive the most distant signals from Psyche, the project enlisted the powerful 200-inch-aperture (5-meter) Hale Telescope at Caltech's Palomar Observatory in San Diego County, California, as its primary downlink station, which provided adequate light-collecting area to capture the faintest photons. Those photons were then directed to a cryogenically cooled superconducting high-efficiency detector array at the observatory where the information encoded in the photons could be processed.

Managed by JPL, DSOC was designed to demonstrate that data encoded in laser photons could be reliably transmitted, received, and then decoded after traveling millions of miles from Earth out to Mars distances. Nearly two years after launching aboard the agency's Psyche mission in 2023, the demonstration completed its 65th and final "pass" on Sept. 2, 2025, sending a laser signal to Psyche and receiving the return signal from 218 million miles (350 million kilometers) away.

Caltech manages JPL for NASA. This demonstration is the latest in a series of optical communication experiments funded by the Space Technology Mission Directorate's Technology Demonstration Missions Program managed at NASA's Marshall Space Flight Center in Huntsville, Alabama, and the agency's SCaN (Space Communications and Navigation) program in the Space Operations Mission Directorate. The Psyche mission is led by Arizona State University. Lindy Elkins-Tanton of the University of California, Berkeley is the principal investigator. A division of Caltech in Pasadena, JPL is responsible for the mission's overall management.

To learn more about the laser communications demo, visit:

https://www.jpl.nasa.gov/missions/deep-space-optical-communications-dsoc/
