NASA Testing Airborne Lasers to Touch the Wind

PHOTO DATE: 8-8-13 LOCATION: Ellington Field -Tarmac SUBJECT: Arrival of SEAC4RS aircraft at Ellington Field PHOTOGRAPHER: Lauren Harnett
NASA

By Joe Atkinson,
NASA's Langley Research Center

A group of NASA researchers could soon be blown away by data they collect during an airborne science campaign that will span from the Pacific coast to Hawaii.

While in the sky, they'll be shooting lasers at the wind to advance technology that could help improve climate and weather predictions.

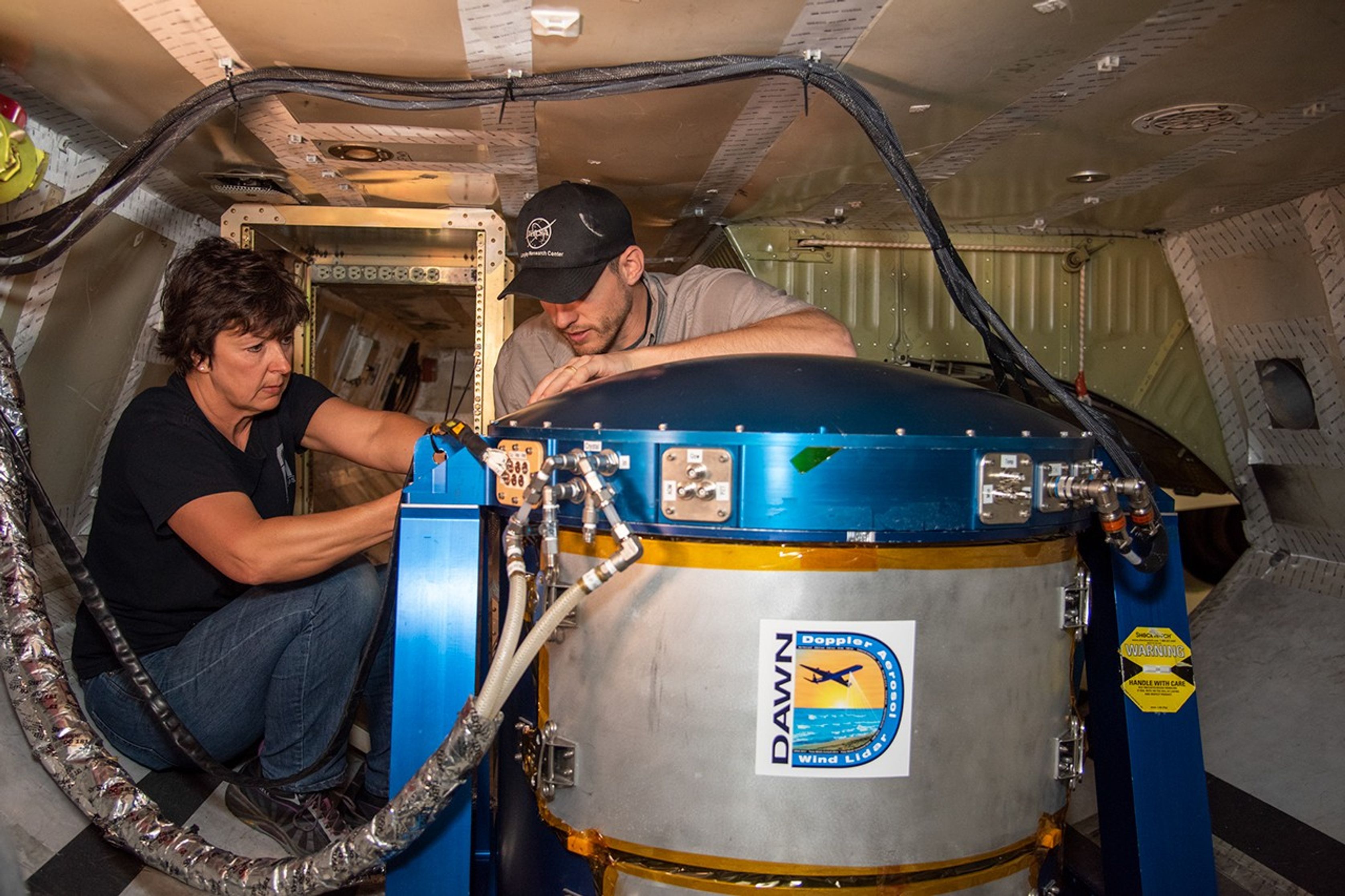

Doppler Aerosol Wind Lidar (DAWN)
Doppler Aerosol Wind Lidar (DAWN) is an airborne instrument that uses pulsed lasers to detect the movement of atmospheric aerosols such as dust or sea salt. In detecting those movements, it can profile wind vector — both speed and direction. Researchers are testing DAWNs capabilities during flights over the eastern Pacific.
NASA/Lauren Hughes

The researchers, from NASA's Langley Research Center in Hampton, Virginia, are at NASA's Armstrong Flight Research Center Building 703 in Palmdale, California, this month to test Doppler Aerosol Wind Lidar (DAWN), an airborne instrument that uses pulsed lasers at varying scan angles to detect the movement of atmospheric aerosols such as dust or sea salt. In detecting those movements, it can profile wind vector — both speed and direction.

DAWN has been used in previous airborne campaigns, most recently the 2017 Convective Processes Experiment, which looked at convective clouds in the North Atlantic, Gulf of Mexico and Caribbean. Several improvements have been made to the instrument since that mission.

As they're testing the new, improved DAWN, the researchers are also aiming to validate measurements from Atmospheric Dynamics Mission Aeolus (ADM Aeolus), a European Space Agency (ESA) satellite that also uses doppler lidar to measure wind profiles.

Kris Bedka
Langley's Kris Bedka, pictured here on the DC-8 flying laboratory, is the lead for a mission that is advancing laser-based technologies for measuring winds in the lower atmosphere.
NASA/Lauren Hughes

ADM Aeolus, which launched Aug. 22, 2018, works by shooting laser beams in the ultraviolet wavelength down at the Earth. The scattered light that bounces back to the orbiting instrument allows it to "see" atmospheric particles, aerosols and molecules as wind carries them through the atmosphere.

"You can process these data to retrieve a wind profile — a vertical profile of the wind projected along the path the laser beam shoots," said Kristopher Bedka, an atmospheric scientist at Langley and the lead for this mission. "To do this from space is an unprecedented capability."

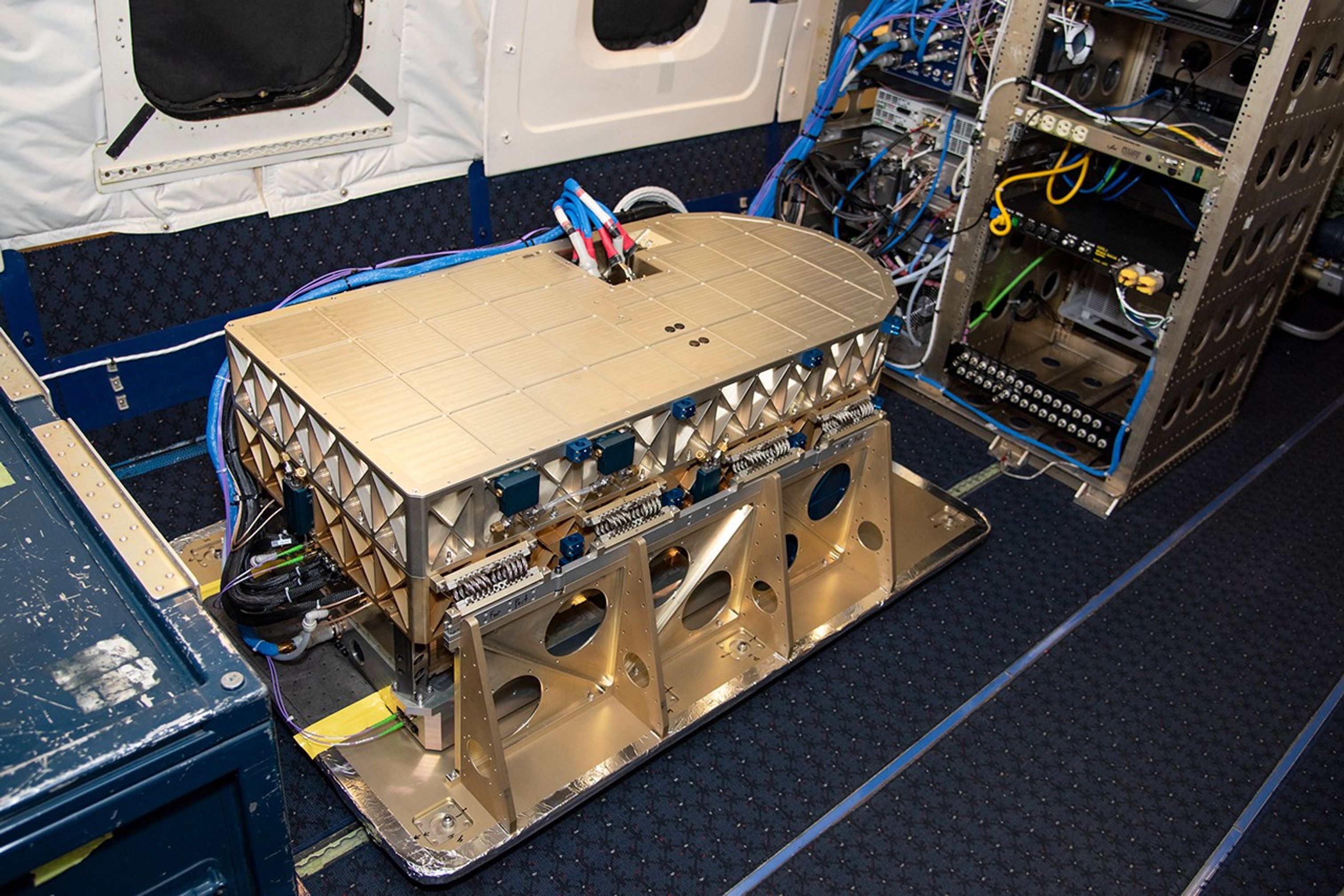

High Altitude Lidar Observatory (HALO)
Aerosol data from the High Altitude Lidar Observatory (HALO), pictured here, will give mission scientists a better sense how DAWN is working and what its strengths and weaknesses are.
NASA/Lauren Hughes

It's unprecedented because researchers have limited methods for measuring winds. Commercial aircraft capture wind information. Weather balloons can make wind measurements. Meteorologists can also determine wind fields using sequential satellite images that show the movement of clouds and water vapor patterns.

"But that's only at the levels where cloud or water vapor gradients are located," said Bedka. "Above the cloud, below the cloud — you really don't have any information about the winds. And so wind lidar allows you to basically see the unseen."

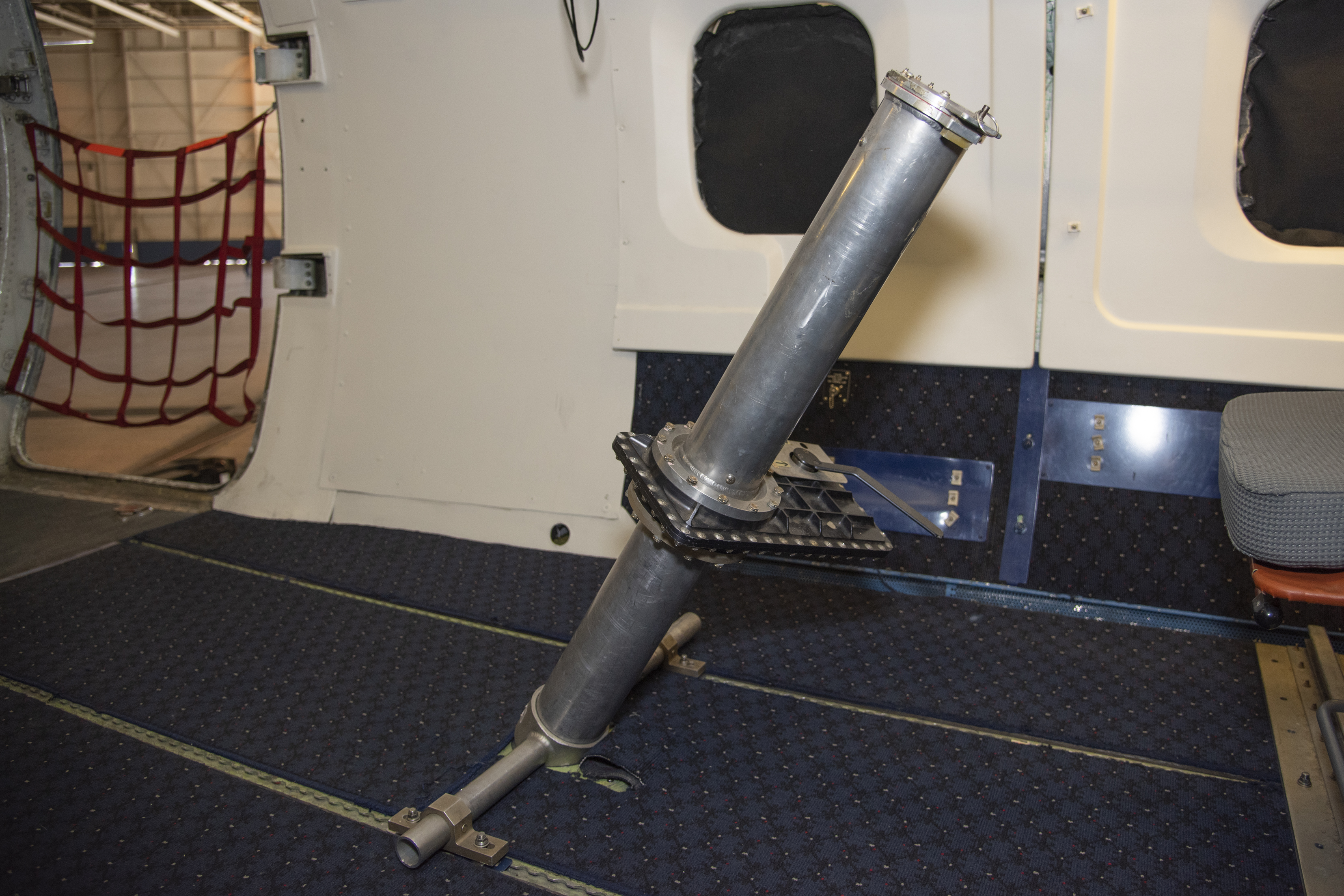

A dropsonde, which will to collect wind and water vapor data
To verify the lidar data they're collecting, mission scientists will use dropsondes, which are devices they'll drop from this tube in the aircraft to collect wind and water vapor data.
NASA/Lauren Hughes

Flights on NASA's DC-8 flying laboratory began April 15 and will continue over the next couple of weeks when ADM Aeolus makes passes over the eastern Pacific.

Michael Kavaya, DAWN's principal investigator, is looking forward to seeing how his refined instrument performs.

"DAWN's accuracy and sensitivity will not only allow us to make direct comparisons of our measurements against Aeolus's, it will also allow us to look at the underlying wind structure to further interpret Aeolus’s wind measurements,” he said.

The team is also bringing along another Langley instrument called the High Altitude Lidar Observatory (HALO). HALO uses a combined Differential Absorption Lidar (DIAL) and High Spectral Resolution Lidar (HSRL) to profile atmospheric aerosols and water vapor.

"We'll be able to pair the aerosol information together with the wind information and truly understand the capabilities of DAWN and what its strengths and weaknesses are, and also to evaluate Aeolus's aerosol and wind measurements," said Bedka.

In addition, HALO's water vapor measurements will give the scientists a more comprehensive view of what's happening in the atmosphere around them and set the stage for future airborne campaigns focused on atmospheric dynamic processes.

"Clouds ingest water vapor and particulates and then transport them throughout the atmosphere," said Bedka. "And so being able to put this picture together, this four-dimensional picture of the atmospheric state, can help us really understand atmospheric processes with extremely high detail."

That level of detail is just icing on the cake. The real key this time out is to take another step toward advancing the science community's ability to measure winds. Indeed, Bedka hopes this mission will "continue to prove that laser-based wind measurement is a great thing to do from aircraft."

That hope is directly in line with the 2017 Earth Science Decadal Survey, which recommended close observation of winds in the lower atmosphere because of their fundamental role in the Earth system.

So it's important work Bedka and his cohorts are doing, and work they'd likely tell you is anything but a breeze.
