OMI

Aura's Ozone Monitoring Instrument

This image is an animated version of the Aura satellite in orbit. The satellite, seen centered in the image, is made up of silver and gold box-like shapes and instruments. Spanning out to the right of the satellite is a long sheet of solar panels. In the background of the image at the bottom is a portion of Earth seen with clouds and a blue haze surrounding it. The top of the background is the deep black of space, with a cluster of green colored stars to the left.

Aura's Ozone Monitoring Instrument (OMI) instrument can distinguish between aerosol types, such as smoke, dust, and sulfates, and measures cloud pressure and coverage, which provides data to derive tropospheric ozone.

OMI continues the TOMS record for total ozone and other atmospheric parameters related to ozone chemistry and climate. OMI measurements are highly synergistic with the other instruments on the Aura platform. OMI is a nadir-viewing wide-field-imaging spectrometer, giving daily global coverage. It provides mapping of pollution products from an urban to super-regional scale.

The instrument observes Earth's backscattered radiation with a wide-field telescope feeding two imaging grating spectrometers. Each spectrometer employs a CCD detector. Onboard calibration includes a white light source, LEDs, and a multi-surface solar-calibration diffuser. A depolarizer removes the polarization from the backscattered radiation.

OMI has been monitoring the recovery of the ozone layer in response to the phase out of chemicals, such as CFCs, agreed to by the nations of the world in the Montreal protocol and later modifications to it at Copenhagen and London. OMI measures the total column amount of atmospheric ozone nitrogen dioxide as well as lower atmospheric dust, smoke, and other aerosols. OMI measures ozone profiles (in the UV) complementary to those measured by TES and HIRDLS (in the IR) and MLS (in the microwave). OMI measures bromine monoxide, formaldehyde, and chlorine dioxide which all play a role in chemistry of the stratosphere and troposphere.

Browse the OMI Science Feature Collection

OMI helps improve understanding and assessment of:

Total Ozone

OMI employs hyperspectral imaging in a push-broom mode to observe solar backscatter radiation in the visible and ultraviolet. The hyperspectral capabilities improve the accuracy and precision of the total ozone amounts and allow for accurate radiometric and wavelength self-calibration over the long term.

Read More

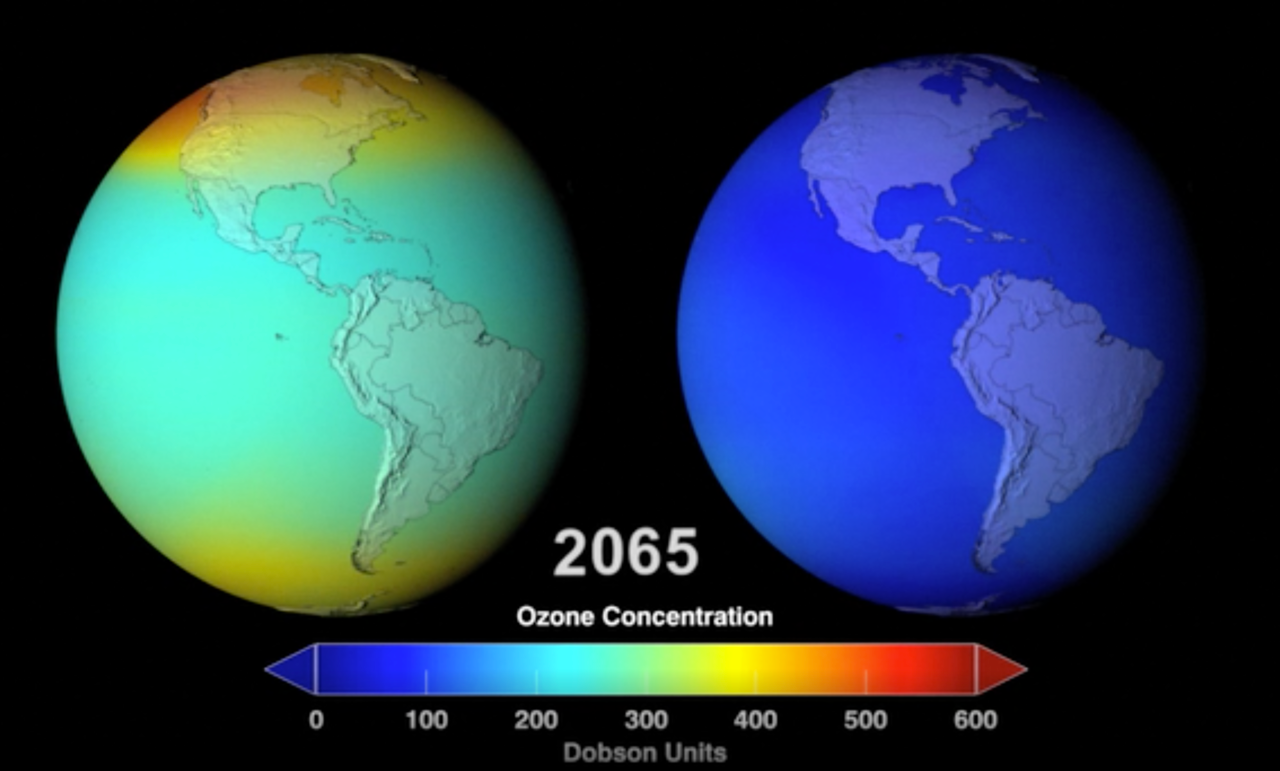

A side-by-side comparison of modeled ozone concentration in Earths atmosphere with the Montreal Protocol (left) and without (right).
Previous “world-avoided” experiments have shown that, without the Montreal Protocol, ozone levels would be depleted globally by the mid-twentieth century.
NASA/Goddard Space Flight Center Scientific Visualization Studio
