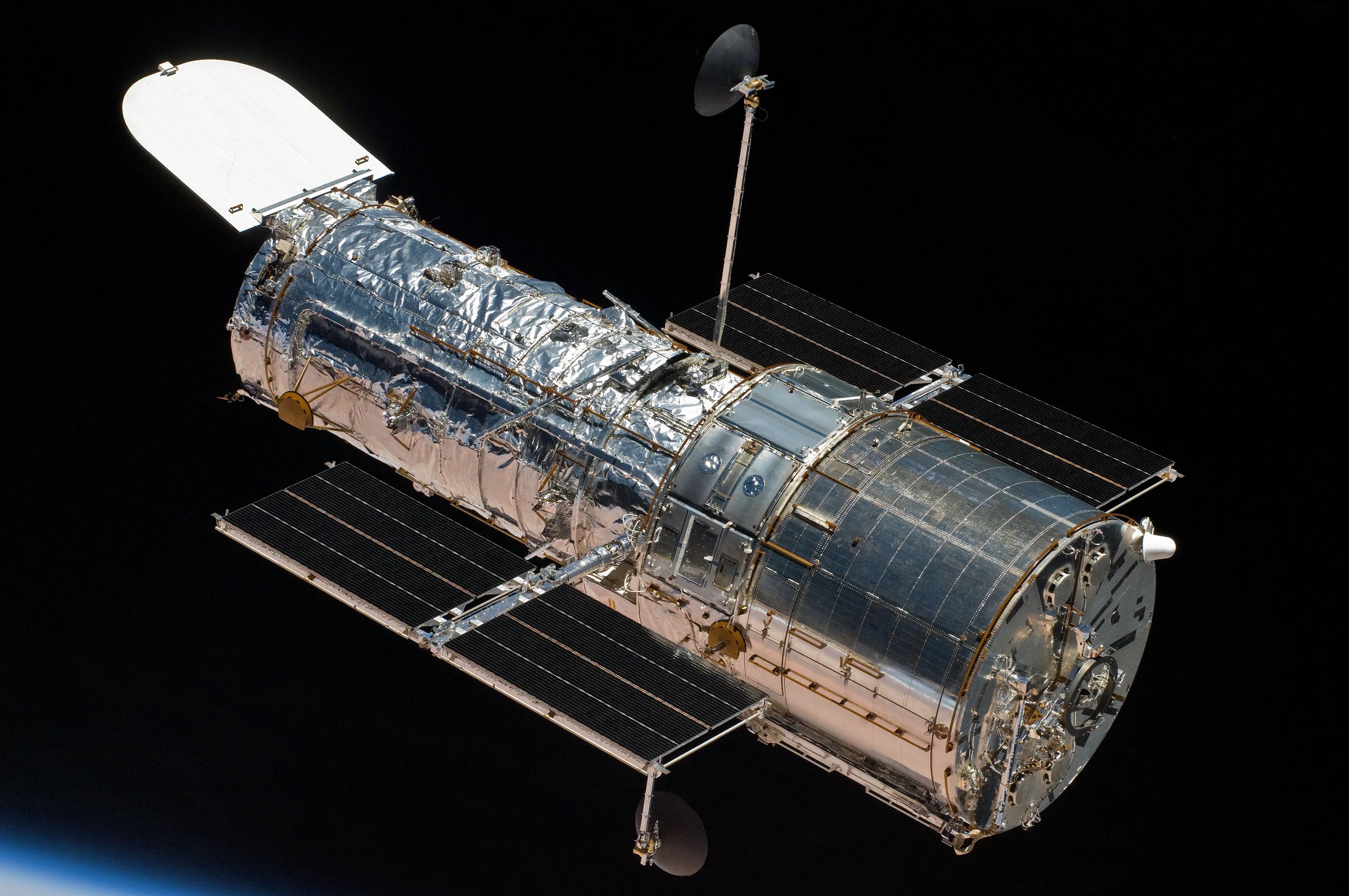

NASA’s Hubble Space Telescope Returns to Science Operations

NASA’s Hubble Space Telescope returned to normal operations late Friday, Oct. 26, and completed its first science observations on Saturday, Oct. 27 at 2:10 AM EDT. The observations were of the distant, star-forming galaxy DSF2237B-1-IR and were taken in infrared wavelengths with the Wide Field Camera 3 instrument. The return to conducting science comes after successfully recovering a backup gyroscope, or gyro, that had replaced a failed gyro three weeks earlier.

A gyro is a device that measures the speed at which the spacecraft is turning, which is necessary to help Hubble turn and lock on to new targets. One of Hubble’s gyros failed on Oct. 5, and the spacecraft’s operations team activated a backup gyro the next day. However, the backup incorrectly returned rotation rates that were far in excess of the actual rates.

Last week the operations team commanded Hubble to perform numerous maneuvers, or turns, and switched the gyro between different operational modes, which successfully cleared what was believed to be blockage between components inside the gyro that produced the excessively high rate values. Next, the team monitored and tested the gyro with additional maneuvers to make sure that the gyro was stable. The team then installed additional safeguards on the spacecraft in case the excessive rate values return, although this is not anticipated.

On Thursday, the operations team conducted further maneuvers to collect gyro calibration data. On Friday, Hubble performed activities similar to science observations, including rotating to point at different sky locations, and locking on to test targets. The team completed all of these activities without issue.

Late Friday, the team began the process to restore the scientific instruments to standard operating status. Hubble successfully completed maneuvers to get on target for the first science observations, and the telescope collected its first science data since Oct. 5.

Hubble is now back in its normal science operations mode with three fully functional gyros. Originally required to last 15 years, Hubble has now been at the forefront of scientific discovery for more than 28 years. The team expects the telescope will continue to yield amazing discoveries well into the next decade, enabling it to work alongside the James Webb Space Telescope.

Hubble is managed and operated at NASA’s Goddard Space Flight Center in Greenbelt, Maryland.

Oct. 22, 2018 - Hubble Moving Closer to Normal Science Operations

NASA took great strides last week to press into service a Hubble Space Telescope backup gyroscope (gyro) that was incorrectly returning extremely high rotation rates. The backup gyro was turned on after the spacecraft entered safe mode due to a failed gyro on Friday, Oct. 5. The rotation rates produced by the backup gyro have since reduced and are now within an expected range. Additional tests will be performed to ensure Hubble can return to science operations with this gyro.

A gyro is a device that measures the speed at which the spacecraft is turning, and is needed to help Hubble turn and lock on to new targets.

A wheel inside the gyro spins at a constant rate of 19,200 revolutions per minute. This wheel is mounted in a sealed cylinder, called a float, which is suspended in a thick fluid. Electricity is carried to the motor by thin wires, approximately the size of a human hair, that are immersed in the fluid. Electronics within the gyro detect very small movements of the axis of the wheel and communicate this information to Hubble’s central computer. These gyros have two modes — high and low. High mode is a coarse mode used to measure large rotation rates when the spacecraft turns across the sky from one target to the next. Low mode is a precision mode used to measure finer rotations when the spacecraft locks onto a target and needs to stay very still.

In an attempt to correct the erroneously high rates produced by the backup gyro, the Hubble operations team executed a running restart of the gyro on Oct. 16. This procedure turned the gyro off for one second, and then restarted it before the wheel spun down. The intention was to clear any faults that may have occurred during startup on Oct. 6, after the gyro had been off for more than 7.5 years. However, the resulting data showed no improvement in the gyro’s performance.

On Oct. 18, the Hubble operations team commanded a series of spacecraft maneuvers, or turns, in opposite directions to attempt to clear any blockage that may have caused the float to be off-center and produce the exceedingly high rates. During each maneuver, the gyro was switched from high mode to low mode to dislodge any blockage that may have accumulated around the float.

Following the Oct. 18 maneuvers, the team noticed a significant reduction in the high rates, allowing rates to be measured in low mode for brief periods of time. On Oct. 19, the operations team commanded Hubble to perform additional maneuvers and gyro mode switches, which appear to have cleared the issue. Gyro rates now look normal in both high and low mode.

Hubble then executed additional maneuvers to make sure that the gyro remained stable within operational limits as the spacecraft moved. The team saw no problems and continued to observe the gyro through the weekend to ensure that it remained stable.

The Hubble operations team plans to execute a series of tests to evaluate the performance of the gyro under conditions similar to those encountered during routine science observations, including moving to targets, locking on to a target, and performing precision pointing. After these engineering tests have been completed, Hubble is expected to soon return to normal science operations.

Hubble is managed and operated at NASA’s Goddard Space Flight Center in Greenbelt, Maryland.

Oct. 12, 2018 - Update on the Hubble Space Telescope Safe Mode

NASA continues to work toward resuming science operations of the Hubble Space Telescope after the spacecraft entered safe mode due to a failed gyroscope (gyro) on Friday, Oct. 5.

Following the gyro failure, the Hubble operations team turned on a backup gyro on the spacecraft. However, that gyro did not perform as expected, reporting rotation rates that are orders of magnitude higher than they actually are. This past week, tests were conducted to assess the condition of that backup gyro. The tests showed that the gyro is properly tracking Hubble’s movement, but the rates reported are consistently higher than the true rates. This is similar to a speedometer on your car continuously showing that your speed is 100 miles per hour faster than it actually is; it properly shows when your car speeds up or slows down, and by how much, but the actual speed is inaccurate.

When the spacecraft turns across the sky from one target to the next, the gyro is put into a coarser (high) mode. In this high mode it may be possible to subtract out a consistent large offset to get an accurate reading. However, after the large turns are over, the spacecraft attempts to lock onto a target and stay very still. For this activity, the gyro goes into a precision (low) mode to measure very small movements. The extremely high rates currently being reported exceed the upper limit of the gyro in this low mode, preventing the gyro from reporting the spacecraft’s small movements.

An anomaly review board that consists of professionals experienced in the manufacturing of such gyros, Hubble operations personnel, flight software engineers and other experts was formed earlier this week to identify the cause of this behavior and determine what solutions can be implemented from the ground to correct or compensate for it.

If the team is successful in solving the problem, Hubble will return to normal, three-gyro operations. If it is not, the spacecraft will be configured for one-gyro operations, which will still provide excellent science well into the 2020s, enabling it to work alongside the James Webb Space Telescope and continue groundbreaking science.

Safe mode places the telescope into a stable configuration that suspends science observations and orients the spacecraft’s solar panels toward the Sun to ensure Hubble’s power requirements are met. The spacecraft remains in this configuration until ground control can correct or compensate for the issue. The rest of the spacecraft and its instruments are still fully functional and are expected to produce excellent science for years to come.

A gyro is a device that measures the speed at which the spacecraft is turning, and is needed to help Hubble turn and lock on to new targets. To meet the stringent pointing requirements necessary to study far-off astronomical objects and obtain groundbreaking science data, Hubble’s gyros are extremely accurate. Hubble preferably uses three gyros at any given time to make the observatory as efficient as possible, and would work at slightly lower efficiency on only one gyro.

During Servicing Mission 4 in 2009, astronauts installed six new gyros on Hubble. Three gyros have since failed after achieving or exceeding the average runtime for a Hubble gyro. When fewer than three operational gyros remain, Hubble will continue to make scientific observations in a previously developed and tested mode that uses just one gyro in order to maximize the observatory’s lifetime.

Originally required to last 15 years, Hubble has now been operating for more than 28. The final servicing mission in 2009, expected to extend Hubble’s lifetime an additional 5 years, has now produced more than 9 years of science observations.

Hubble is managed and operated at NASA’s Goddard Space Flight Center in Greenbelt, Maryland.

Oct. 8, 2018 - Hubble in Safe Mode as Gyro Issues are Diagnosed

NASA is working to resume science operations of the Hubble Space Telescope after the spacecraft entered safe mode on Friday, October 5, shortly after 6:00 p.m. EDT. Hubble’s instruments still are fully operational and are expected to produce excellent science for years to come.

Hubble entered safe mode after one of the three gyroscopes (gyros) actively being used to point and steady the telescope failed. Safe mode puts the telescope into a stable configuration until ground control can correct the issue and return the mission to normal operation.

Built with multiple redundancies, Hubble had six new gyros installed during Servicing Mission-4 in 2009. Hubble usually uses three gyros at a time for maximum efficiency, but can continue to make scientific observations with just one.

The gyro that failed had been exhibiting end-of-life behavior for approximately a year, and its failure was not unexpected; two other gyros of the same type had already failed. The remaining three gyros available for use are technically enhanced and therefore expected to have significantly longer operational lives.

Two of those enhanced gyros are currently running. Upon powering on the third enhanced gyro that had been held in reserve, analysis of spacecraft telemetry indicated that it was not performing at the level required for operations. As a result, Hubble remains in safe mode. Staff at NASA’s Goddard Space Flight Center and the Space Telescope Science Institute are currently performing analyses and tests to determine what options are available to recover the gyro to operational performance.

Science operations with Hubble have been suspended while NASA investigates the anomaly. An Anomaly Review Board, including experts from the Hubble team and industry familiar with the design and performance of this type of gyro, is being formed to investigate this issue and develop the recovery plan. If the outcome of this investigation results in recovery of the malfunctioning gyro, Hubble will resume science operations in its standard three-gyro configuration.

If the outcome indicates that the gyro is not usable, Hubble will resume science operations in an already defined “reduced-gyro” mode that uses only one gyro. While reduced-gyro mode offers less sky coverage at any particular time, there is relatively limited impact on the overall scientific capabilities.
