Titan’s North: The Big Picture — Unannotated

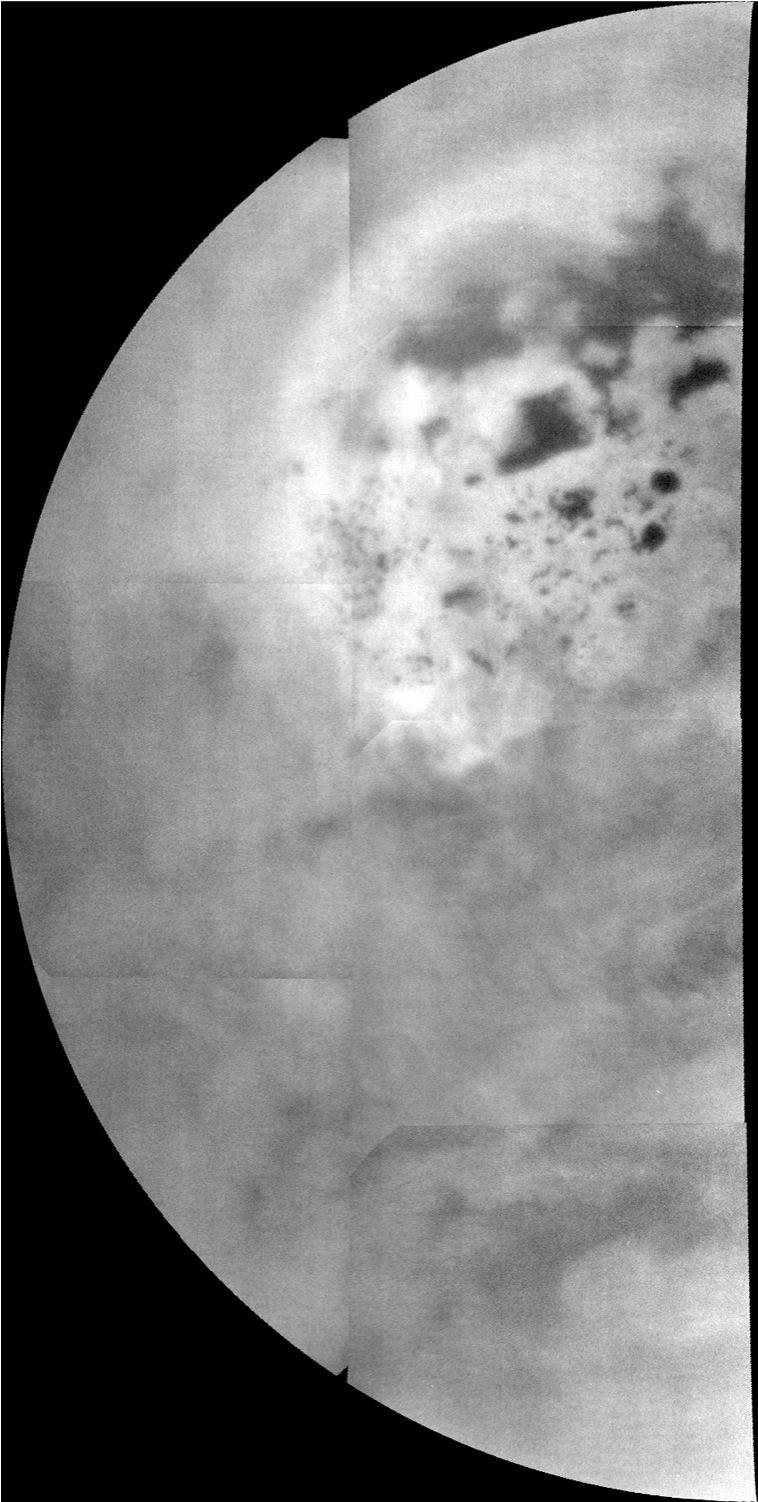

This mosaic, made from near-infrared images of Titan obtained by Cassini's imaging science subsystem, shows a view from the north pole (upper middle of mosaic) down to near the equator at the bottom.
October 23, 2013
PIA NumberPIA17472
  • english

Almost all of the hydrocarbon seas and lakes on the surface of Saturn's moon Titan cluster around the north pole, as can be seen in this mosaic from NASA's Cassini mission. This mosaic, made from near-infrared images of Titan obtained by Cassini's imaging science subsystem, shows a view from the north pole (upper middle of mosaic) down to near the equator at the bottom. Here, the seas and lakes appear as dark shapes, embedded in some kind of bright terrain. Titan is the only world in the solar system other than Earth that is known to have stable bodies of liquid on the surface. Titan's, however, are composed of liquid ethane and methane rather than liquid water.

The bright area suggests the surface material around the lakes is unique and might explain why almost all of Titan's lakes are found in this region. It appears to cover much of the surface north of 65 to 70 degrees north latitude on this side of Titan. Titan's lakes have very distinctive shapes -- rounded cookie-cutter silhouettes and steep sides – and a variety of formation mechanisms have been proposed. The explanations range from the collapse of land after a volcanic eruption to karst terrain, where liquids dissolve soluble bedrock. Karst terrains on Earth can create spectacular topography such as the Carlsbad Caverns in New Mexico.

The north pole is in the upper middle in this view. The largest of the dark shapes, at the upper right, is Kraken Mare, which is about the size of the Caspian Sea and Lake Superior put together. To its left lies Ligeia Mare, the second largest sea, which measures about 300 miles (500 kilometers) across. And below them is Punga Mare, which lies near the north pole and is about 240 miles (380 kilometers) across.

The surface around the lakes appears brighter than Titan's generally bland (darker grey) mid-latitudes. At the bottom of the mosaic, Titan's largest impact crater, Menrva, can be seen as a bright feature almost completed surrounded by darker areas of widespread dunes. (Earlier views of Menrva are available at Approaching Titan Again, Exploring the Wetlands of Titan and Cassini Radar Zooms Out on Menrva In this view, features at low latitudes are harder to discern because they were close to the horizon when these high-latitude observations were made.

An annotated version is also available .

The near-infrared images that make up this mosaic were obtained by Cassini's imaging science subsystem on July 26, 2013. They were obtained in the near infrared band of light (938 nanometers), close to the visible range of light that human eyes can see. To human eyes, the lakes would still appear darker than the surrounding terrain. Seven imaging footprints, involving four images each, were used to make this mosaic in order to maximize signal from Titan's surface through the hazy atmosphere. Image scale is 1.78 miles (2.86 kilometers) per pixel.

Until now, Cassini's imaging science subsystem has only been able to capture distant, oblique or partial views of this area (e.g., Seeing Farther North and Northern Clouds in Motion). Three recent flybys provided better viewing geometry now that sunlight has pierced the winter darkness that shrouded Titan's north pole at the time of Cassini's arrival in the Saturn system nine years ago. A thick cap of haze that once hung over the north pole has also dissipated as northern summer approaches. And, thankfully, Titan's beautiful, almost cloudless, rain-free weather continued during Cassini's flybys this past summer.

For comparison, Cassini's visual and infrared spectrometer also obtained data on the same area around the same time: Titan's Northern Lakes: Salt Flats?. Other imaging camera views can be seen at Dark Lakes on a Bright Landscape and Bird's Eye View of the Land of Lakes.

The Cassini-Huygens mission is a cooperative project of NASA, the European Space Agency and the Italian Space Agency. The Jet Propulsion Laboratory, a division of the California Institute of Technology, Pasadena, manages the Cassini-Huygens mission for NASA's Science Mission Directorate in Washington. The Cassini orbiter and its two onboard cameras were designed, developed and assembled at JPL. The imaging team consists of scientists from the United States, the United Kingdom, France and Germany. The imaging operations center is based at the Space Science Institute in Boulder, Colo.

??For more information about Cassini and its mission, visit: http://www.nasa.gov/cassini and http://saturn.jpl.nasa.gov .

Credit: NASA/JPL-Caltech/SSI/JHUAPL/Univ. of Arizona
