Tools at Curiosity’s ‘Fingertips’

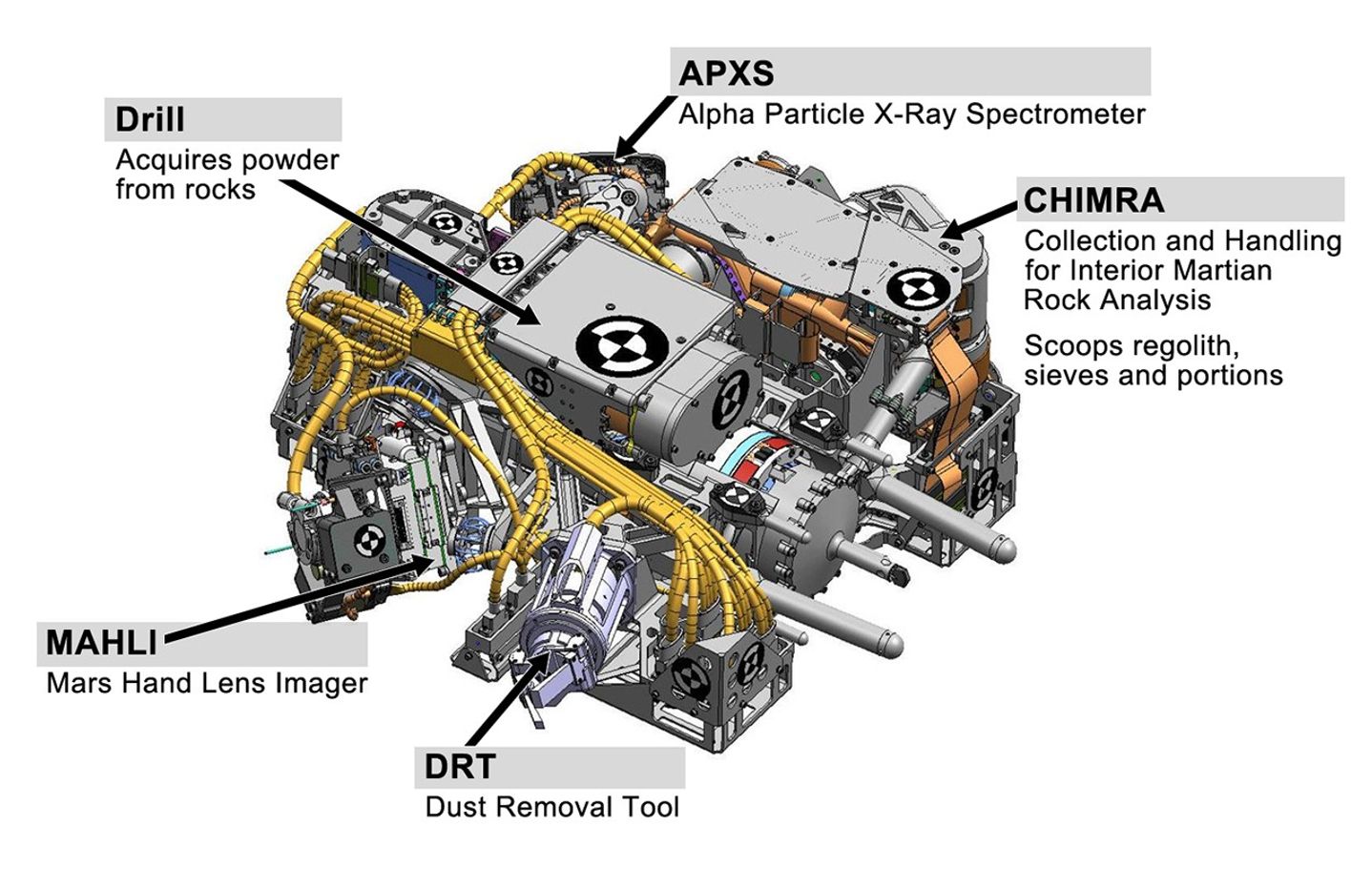

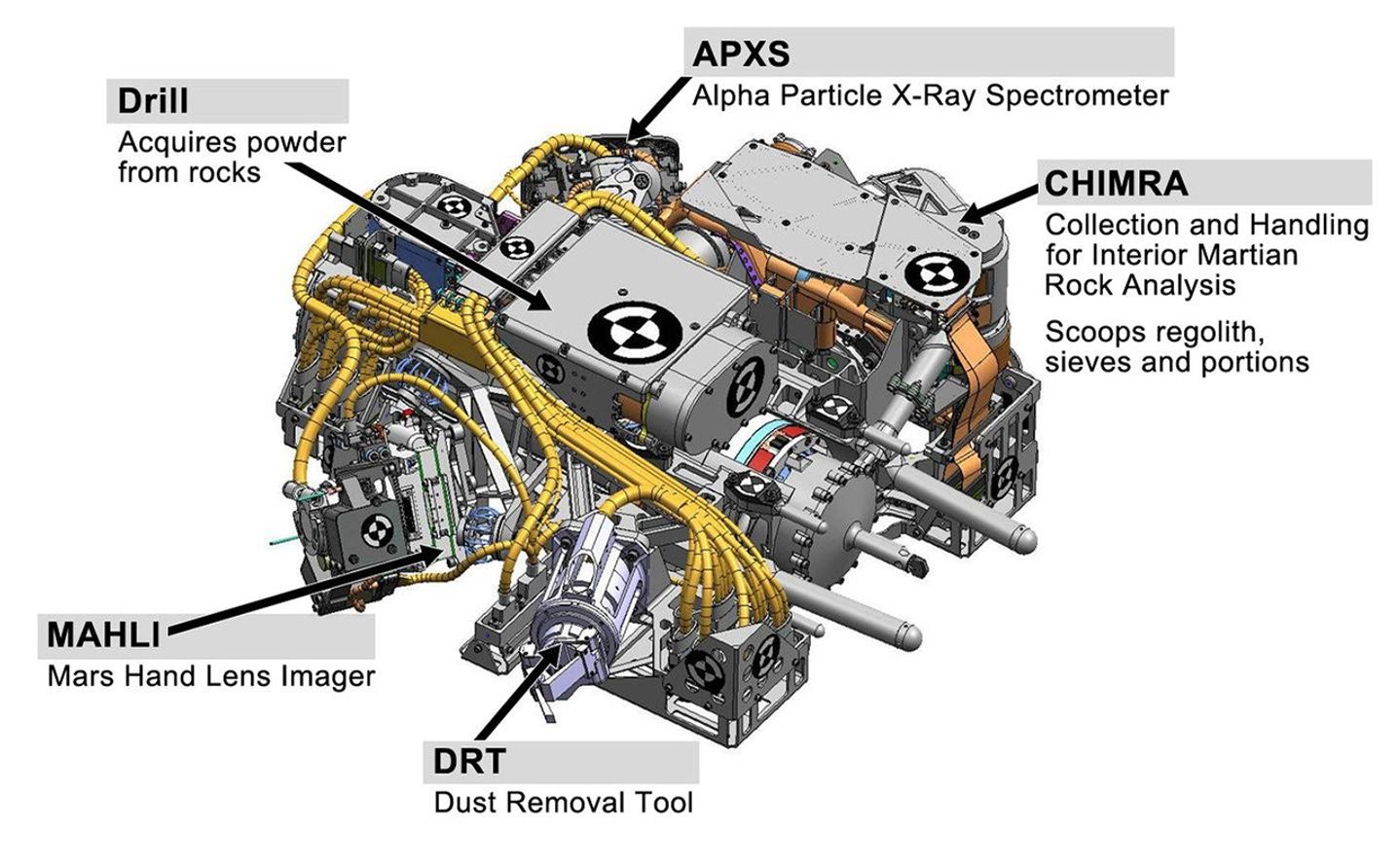

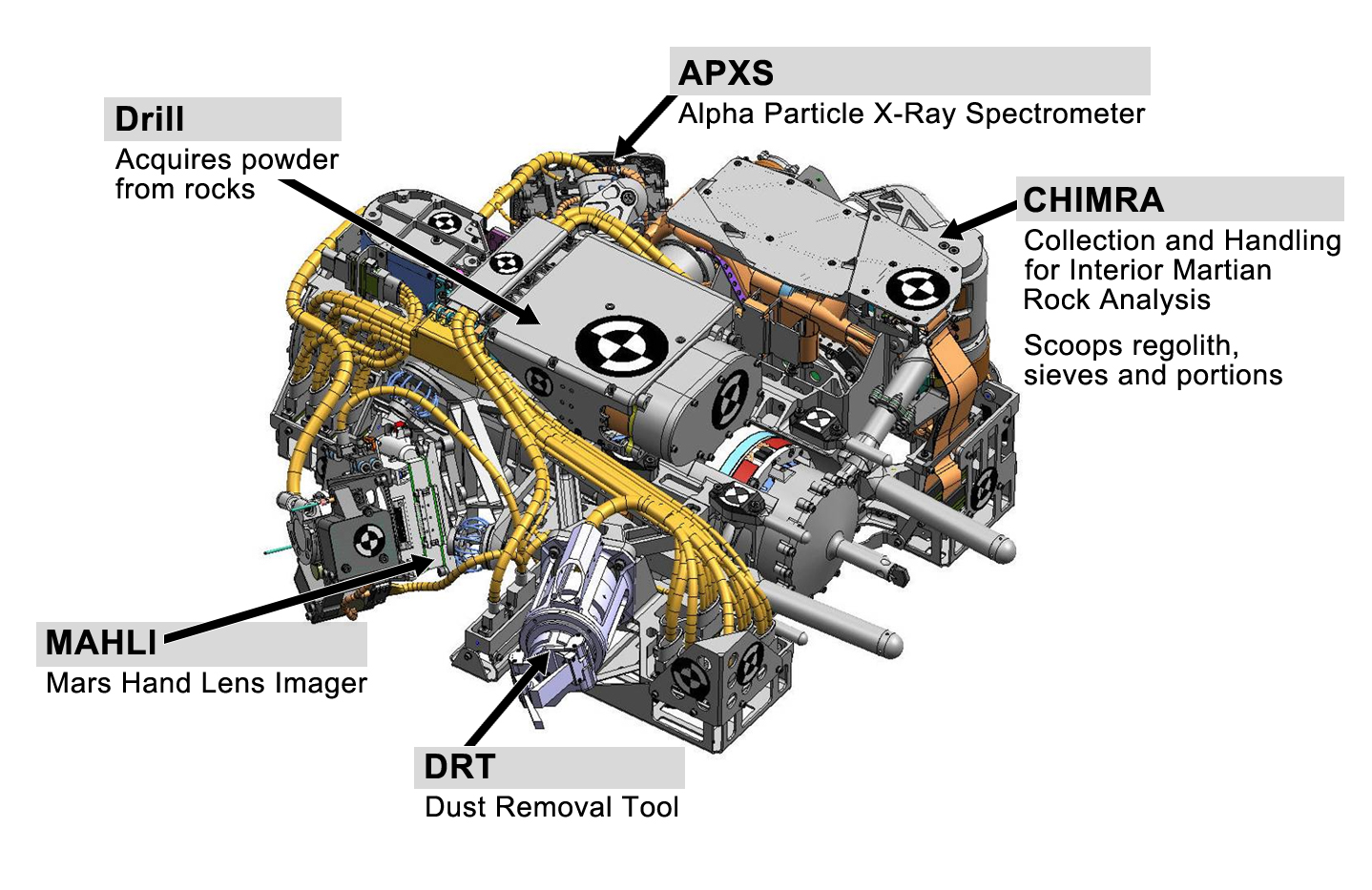

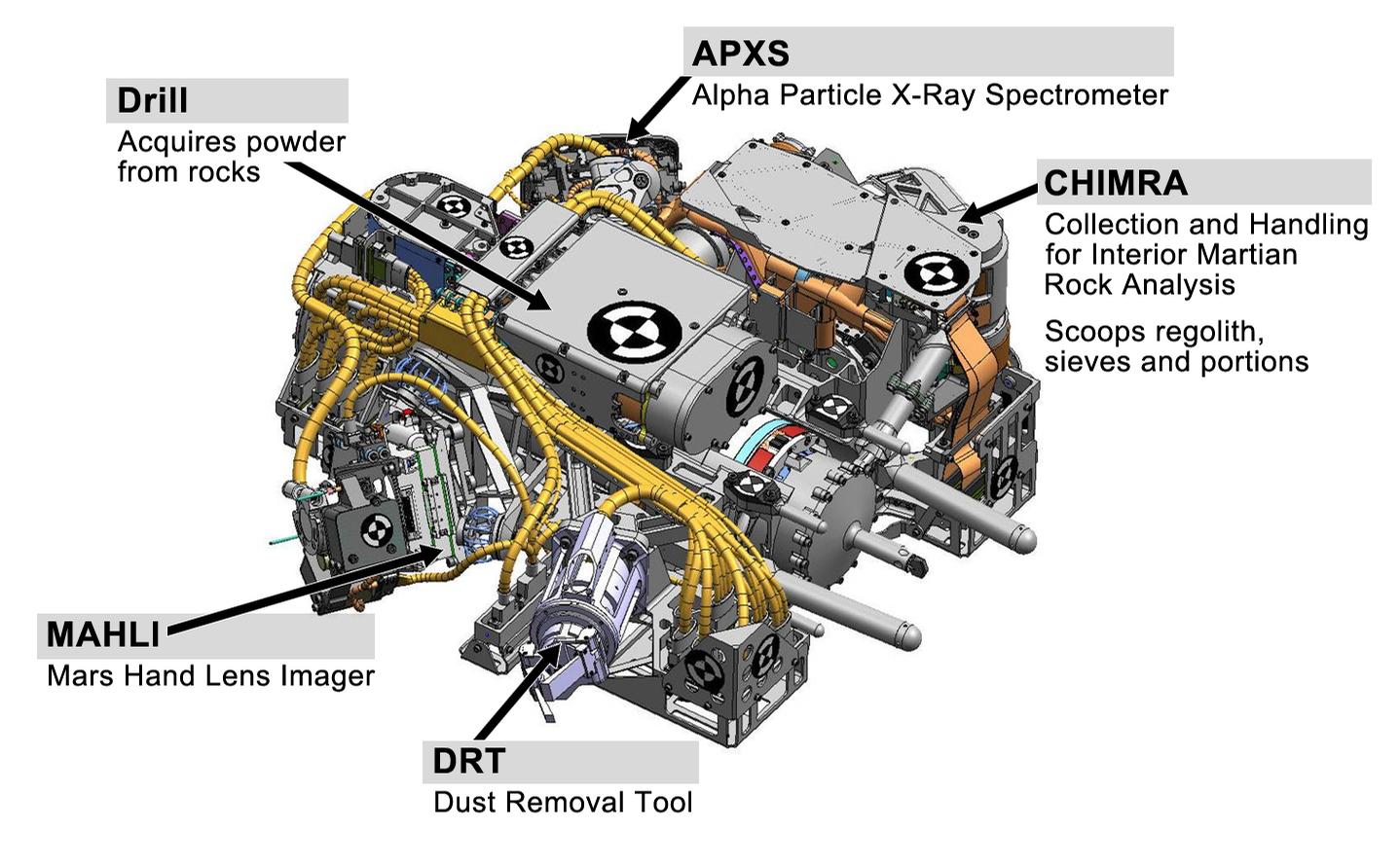

This engineering drawing shows the five devices that make up the turret at the end of the arm on NASA's Curiosity rover. These include: the drill for acquiring powdered samples from interiors of rocks; the Alpha Particle X-ray Spectrometer (APXS); the sample processing subsystem named Collection and Handling for Interior Martian Rock Analysis (CHIMRA), which includes a scoop that can scoop up lose dirt from the Martian surface; the Dust Removal Tool (DRT) and the Mars Hand Lens Imager (MAHLI).
