View into ‘John Klein’ Drill Hole in Martian Mudstone

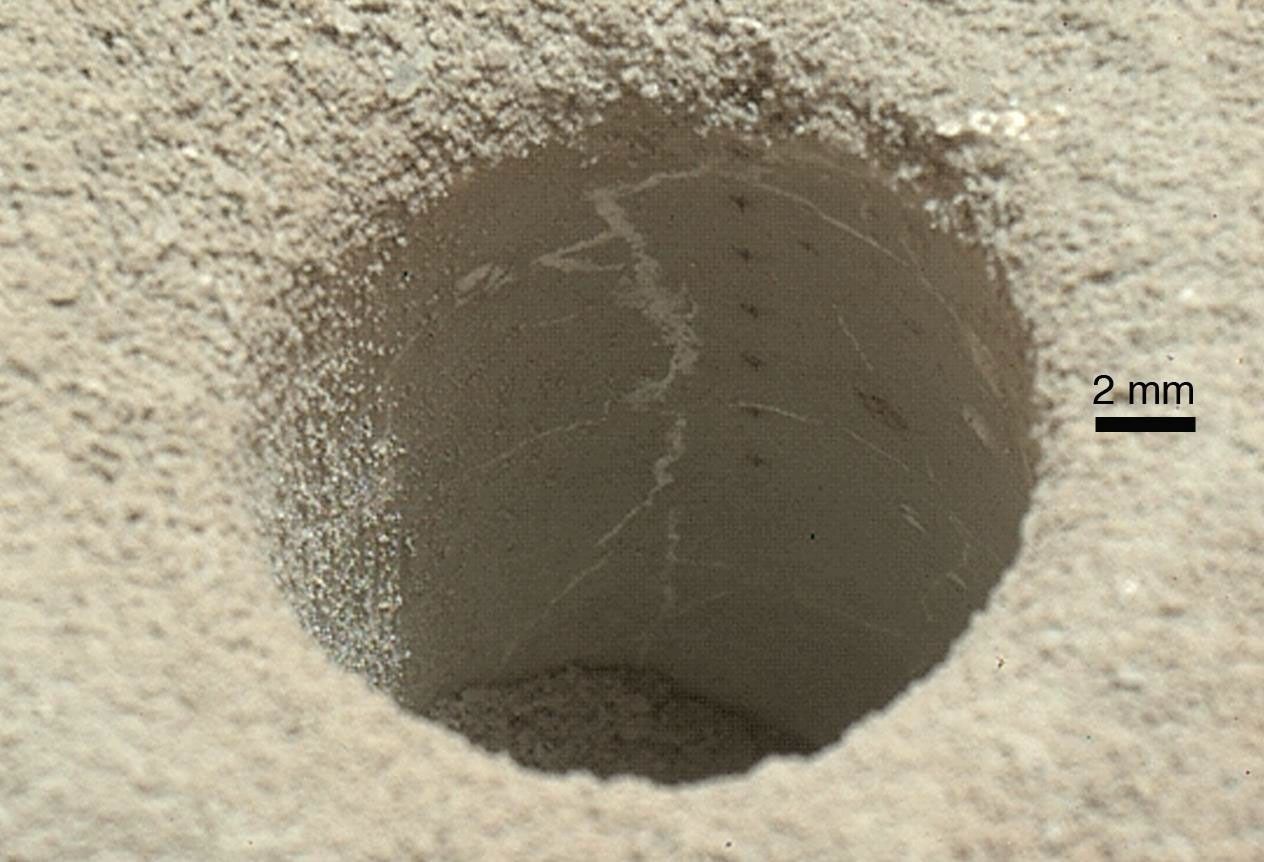

The hole that NASA's Curiosity Mars rover drilled into target rock "John Klein" provided a view into the interior of the rock, as well as obtaining a sample of powdered material from the rock. The rock is part of the Sheepbed mudstone deposit in the Yellowknife Bay area of Gale Crater. This image, taken by Curiosity's Mars Hand Lens Imager (MAHLI) camera, reveals gray colored cuttings, rock powder and interior wall. Notice the homogeneous, fine grain size of the mudstone, and the irregular network of sulfate-filled hairline fractures. A vertical array of pits in the side of the hole resulted from using the laser-shooting Chemistry and Camera (ChemCam) instrument to assess composition at those points. The MAHLI took this image during the 270th Martian day, or sol, of Curiosity's work on Mars (May 10, 2013). The diameter of hole is about 0.6 inch (1.6 centimeters).

The Sheepbed mudstone is interpreted to represent an ancient lake. It preserves evidence of an environment that would have been suited to support microbes that get their energy by eating chemicals in rocks. This wet environment was characterized by neutral pH, low salinity, and variable oxidation of iron- and sulfur-containing minerals. Carbon, hydrogen, oxygen, sulfur, nitrogen and phosphorus were measured directly as key elements for supporting possible life. These results highlight the biological viability of fluvial-lacustrine environments (streams and lakes) in the history of Mars after the earliest era of the Martian past, called the Noachian Era.
