Homogenizing Global Sulfur Dioxide Measurements from Multiple Satellite Sensors

Standard SO₂ data products demonstrate large biases that vary from region to region and satellite to satellite. These biases are due to the influence of ozone variations on SO₂ retrievals and changes in instrument characteristics. Pixel averaging and spatial filtration procedures are shown to remove instrument biases, producing consistent data from the three satellites instruments. All three detect about 30 natural and anthropogenic continuously-emitting, localized sources and SO₂ emissions were estimated from each.

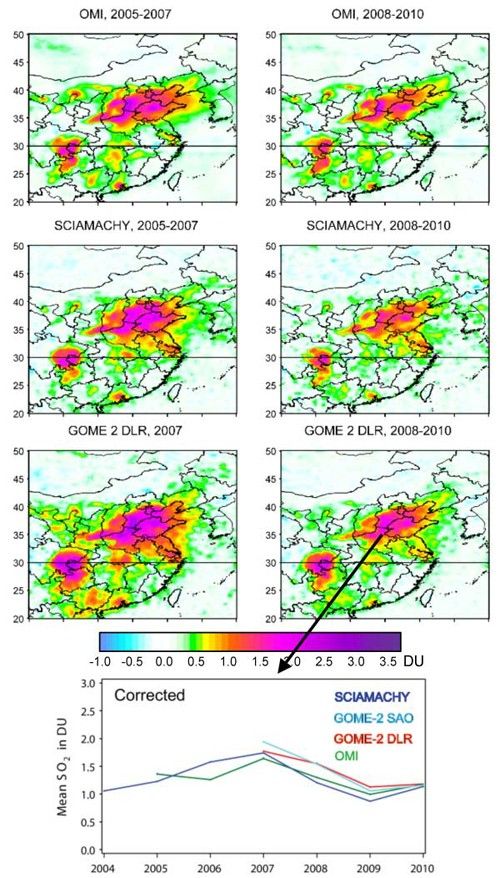

China has a very large number of individual SO₂ sources. Although standard SO₂ data products from the three satellites differ by more than 50%, the spatial filtration technique largely reconciles these differences (right). The SO₂ time series over northern China indicate a large increase until 2007, likely due to the construction of numerous coal-fired power plants in the region. The reversal in the trend in 2008-2009 was probably caused by both pollution control and the slow-down in the global economy. The growing trend has resumed since 2009, as the economy recovers from the recession.

Satellite mapping of sulfur dioxide (SO₂) is useful to track volcanic and anthropogenic emissions in places where detailed SO₂ emission information is not available. Three UV satellite instruments provide total column SO₂ data:

• NASA Aura Ozone Monitoring Instrument (OMI) (top)
• SCanning Imaging Absorption spectroMeter for Atmospheric CHartographY (SCIAMACHY)
• Global Ozone Monitoring Experiment -2 (GOME-2) (two data products, from DLR and SAO)

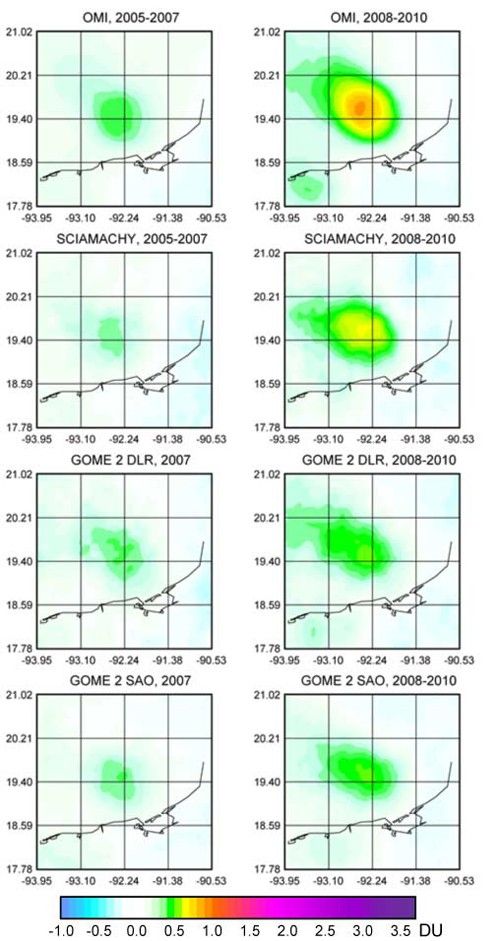

Oil Fields in the Gulf of Mexico

Major Industrial Regions of China

References:

Fioletov, V., et al., (2013), Journal of Geophysical Research-Atmospheres, in press; "AGU Research Spotlight."

10.23.2013
