Fomalhaut Dusty Debris Disk (MIRI Image)

An orange oval extends from the 7 o’clock to 1 o’clock positions. It features a prominent outer ring, a darker gap, an intermediate ring, a narrower dark gap, and a bright inner disk. At the center is a ragged black spot where the detector is saturated.

This image of the dusty debris disk surrounding the young star Fomalhaut is from Webb’s Mid-Infrared Instrument (MIRI). It reveals three nested belts extending out to 14 billion miles (23 billion kilometers) from the star. The inner belts – which had never been seen before – were revealed by Webb for the first time. The ragged black spot in the middle indicates a lack of data due to detector saturation.

The Hubble Space Telescope and Herschel Space Observatory, as well as the Atacama Large Millimeter/submillimeter Array (ALMA), have previously taken sharp images of the outermost belt. However, none of them found any structure interior to it.

These belts most likely are carved by the gravitational forces produced by unseen planets.

About the Object

  • R.A. Position
    R.A. PositionRight ascension – analogous to longitude – is one component of an object's position.
    22:57:39.05
  • Dec. Position
    Dec. PositionDeclination – analogous to latitude – is one component of an object's position.
    -29:37:20.05
  • Constellation
    ConstellationOne of 88 recognized regions of the celestial sphere in which the object appears.
    Piscis Austrinus
  • Distance
    DistanceThe physical distance from Earth to the astronomical object. Distances within our solar system are usually measured in Astronomical Units (AU). Distances between stars are usually measured in light-years. Interstellar distances can also be measured in parsecs.
    25 light-years (8 parsecs)

About the Data

  • Data Description
    Data DescriptionProposal: A description of the observations, their scientific justification, and the links to the data available in the science archive.
    Science Team: The astronomers who planned the observations and analyzed the data. "PI" refers to the Principal Investigator.

    The JWST observations include those from program 1193 (C. Beichman)

  • Instrument
    InstrumentThe science instrument used to produce the data.
    MIRI
  • Exposure Dates
    Exposure DatesThe date(s) that the telescope made its observations and the total exposure time.
    21 Oct 2022
  • Filters
    FiltersThe camera filters that were used in the science observations.
    F2550W
  • Object Name
    Object NameA name or catalog number that astronomers use to identify an astronomical object.
    Fomalhaut
  • Object Description
    Object DescriptionThe type of astronomical object.
    Dusty debris disk
  • Release Date
    May 8, 2023
  • Science Release
    Webb Looks for Fomalhaut’s Asteroid Belt and Finds Much More
    Read the release
  • Credit
    Image: NASA, ESA, CSA; Image Processing: András Gáspár (University of Arizona), Alyssa Pagan (STScI); Science: András Gáspár (University of Arizona)

Downloads

  • Full Res (For Print), 1092 × 977
    tif (1.11 MB)
  • Full Res (For Display), 1092 × 977
    png (1.01 MB)
An orange oval extends from the 7 o’clock to 1 o’clock positions. It features a prominent outer ring, a darker gap, an intermediate ring, a narrower dark gap, and a bright inner disk. At the center is a ragged black spot where the detector is saturated.
Color Info
Color InfoA brief description of the methods used to convert telescope data into the color image being presented.

The image is a single exposure acquired by the MIRI instrument on the James Webb Space Telescope. The color results from assigning an warm color map to a monochromatic (grayscale) image.  Orange color map: F2250W

Compass and Scale
Compass and ScaleAn astronomical image with a scale that shows how large an object is on the sky, a compass that shows how the object is oriented on the sky, and the filters with which the image was made.

Related Images & Videos

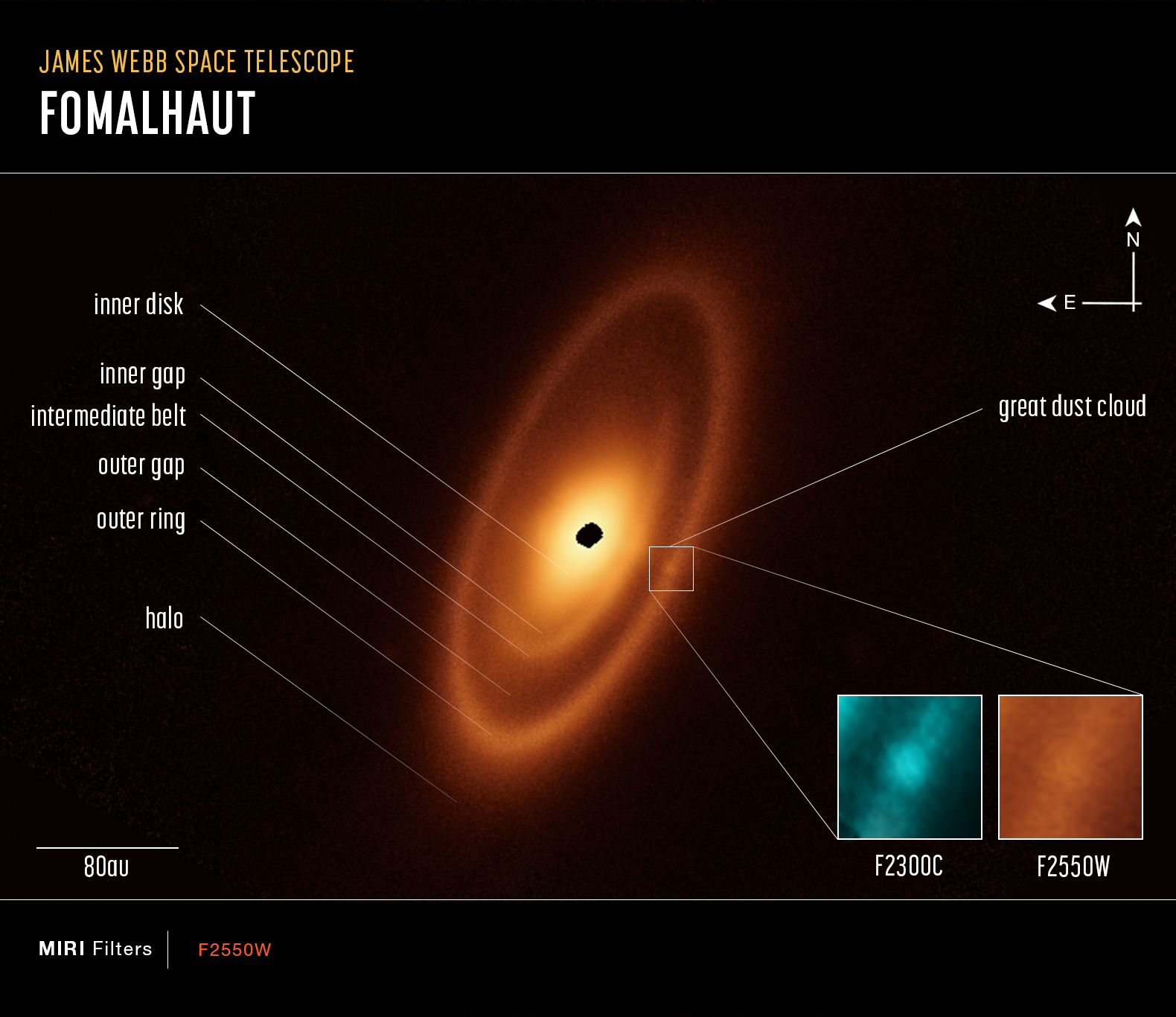

An image labeled James Webb Space Telescope: Fomalhaut. An orange oval extends from the 7 o’clock to 1 o’clock positions. It features a prominent outer ring, a darker gap, an intermediate ring, a narrower dark gap, and a bright inner disk. At the center is a ragged black spot where the detector is saturated. At left, a series of labels with lines indicate the individual features. From inside to outside, they are: inner disk, inner gap, intermediate belt, outer gap, outer ring, and halo. In the outer ring at about the 3 o’clock position, a white box surrounds a clump of material labeled great dust cloud. Two pullouts to the lower right show the clump in blue, using data at 23 microns, and orange, using data at 25.5 microns.

Fomalhaut Dusty Debris Disk (MIRI Compass Image)

This image of the Fomalhaut system, captured by Webb’s Mid-Infrared Instrument (MIRI), shows compass arrows, scale bar, and color key for reference. Labels indicate the various structures. At right, a great dust cloud is highlighted and pullouts show it in two infrared...
