LandIS – Optical Train

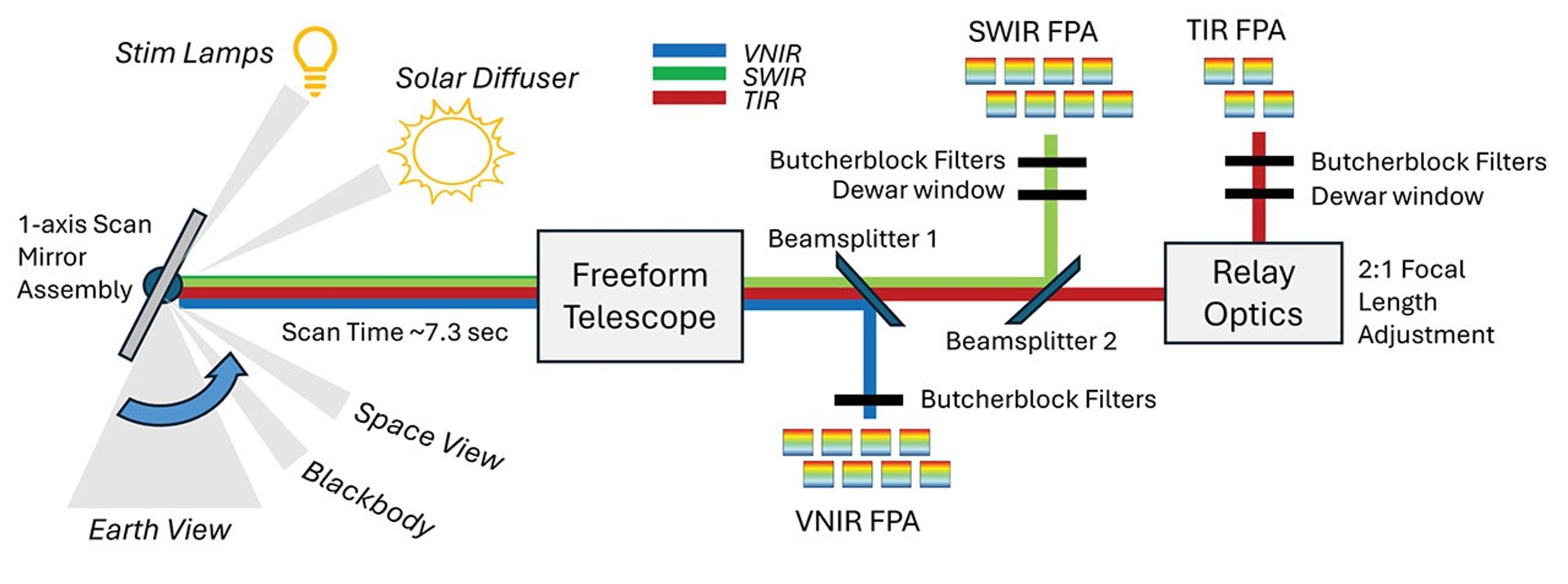

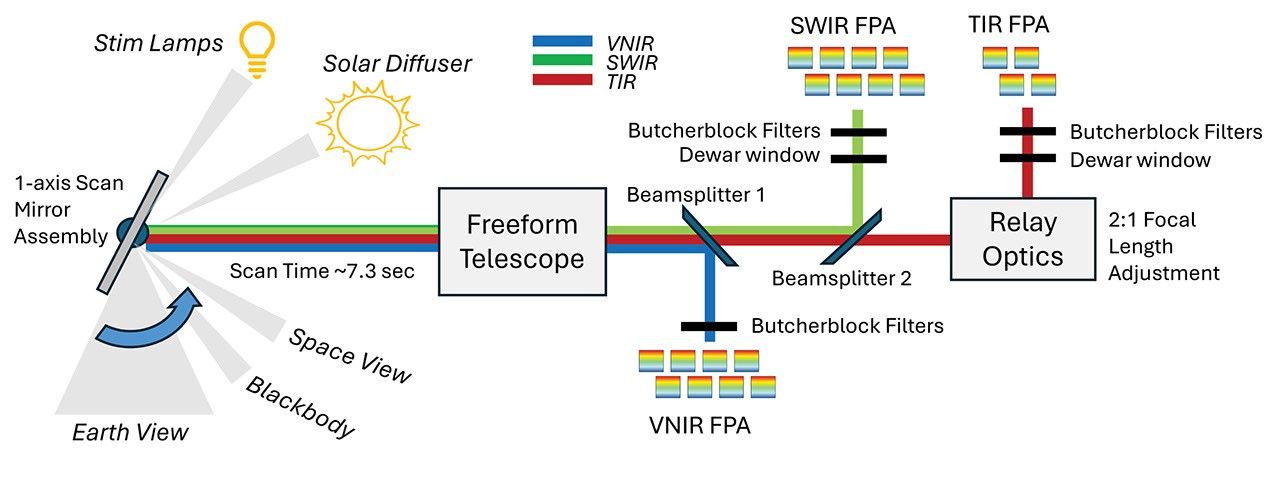

Illustration of the LandIS optical train. The SMA scans the Earth view, blackbody, and space view in one 7.3 second scan. Rays are focused by the telescope and split to the VNIR, SWIR, and TIR focal planes. The SMA periodically stares at the stim lamps or solar diffuser for image calibrations.
