PIXL Instrument Chart Sample

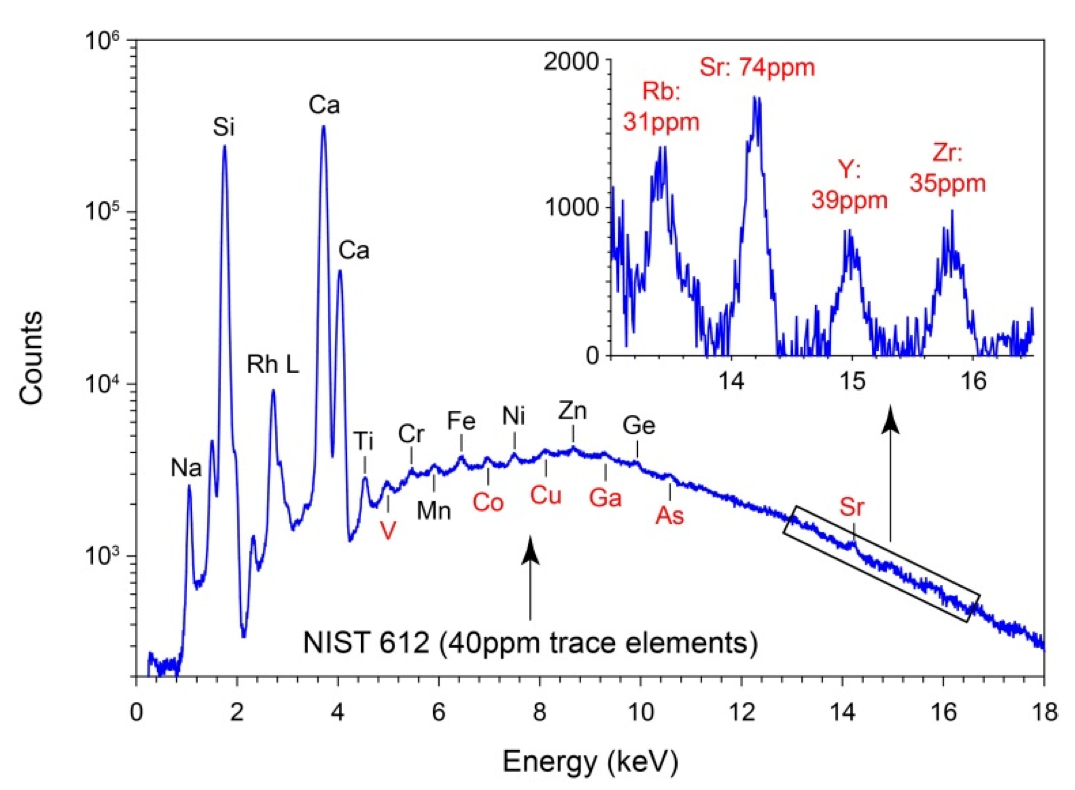

Figure 2. This figure demonstrates that the PIXL instrument detects important trace elements (red) at 10's ppm. Insert: Rb, Sr, Y, Zr are clearly detected due to the lack of interfering excitation lines at 13-17 keV in PIXL (continuum subtracted using a modeled fit to Bremsstrahlung).
July 23, 2015
CreditNASA/JPL-Caltech
Language
  • english

Figure 2. This figure demonstrates that the PIXL instrument detects important trace elements (red) at 10’s ppm. Insert: Rb, Sr, Y, Zr are clearly detected due to the lack of interfering excitation lines at 13–17 keV in PIXL (continuum subtracted using a modeled fit to Bremsstrahlung).
