Saturn’s Main Radiation Belt
Saturn's Main Radiation Belt
August 5, 2004

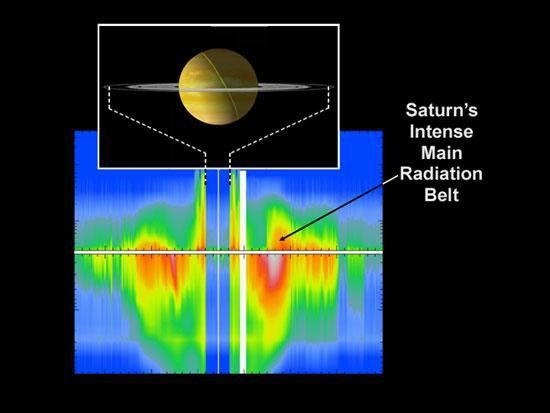

This graph shows the energetic ion and electron data from the Saturn orbit insertion interval on June 30 and July 1, 2004. Ion intensity is shown above the horizontal divider as energy increasing upward. Electron intensity is shown below the horizontal divider as energy increasing downward, as measured by the magnetospheric imaging instrument's low energy magnetospheric measurement system sensor onboard the Cassini spacecraft. Red indicates high particle intensity, blue is low intensity. The vertical energy scales run from 30 kilo-electron volts to several mega-electron volts. Time runs from left to right, with approximately 36 hours of data shown, covering a distance range from Saturn's center between 783,000 kilometers (487,000 miles) at either end, down to about 78,000 (49,000 miles) at closest approach.
The region above the rings was found to be devoid of ions and electrons; the region inside the D-ring inner edge was not directly sampled and absent the magnetospheric imaging instrument ion and neutral camera remote sensing would have been assumed empty of energetic particles.
The Cassini-Huygens mission is a cooperative project of NASA, the European Space Agency and the Italian Space Agency. The Jet Propulsion Laboratory, a division of the California Institute of Technology in Pasadena, manages the Cassini-Huygens mission for NASA's Science Mission Directorate, Washington, D.C. The Cassini orbiter was designed, developed and assembled at JPL. The magnetospheric imaging instrument was designed, built and is operated by an international team lead by the Applied Physics Laboratory of the Johns Hopkins University, Laurel, Md.
