Spectral Mapping of Landing Site

NASA's Imager for Mars Pathfinder (IMP) shows the shapes of the spectra of Mars surface materials can easily be measured from multispectral images.
July 22, 1997
CreditNASA/JPL/Johns Hopkins University
Language
  • english

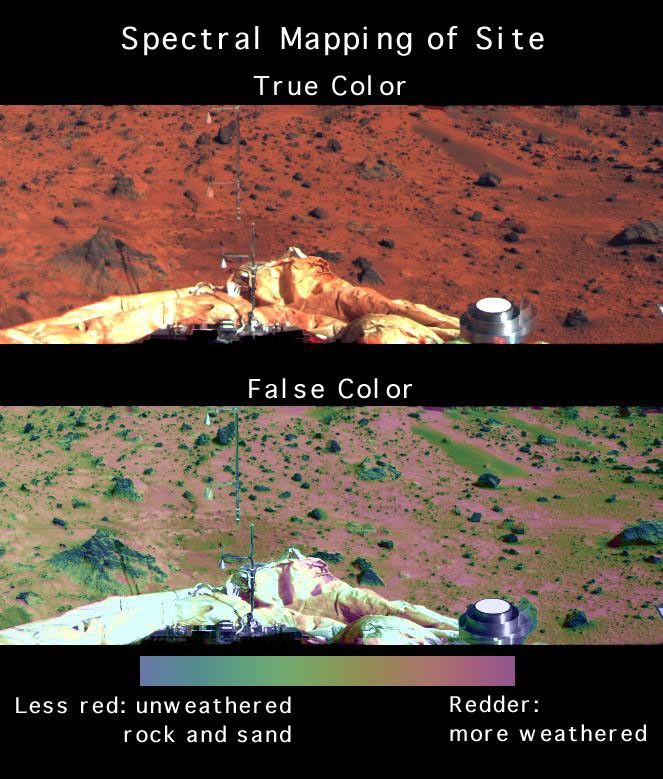

The shapes of the spectra of surface materials can easily be measured from multispectral images. Measures of surface spectral properties can also be shown as false color overlain on an image to summarize spectral variations near the lander at a glance. The top image shows the region southeast of the lander in true color. In the bottom image of the same region, the strength of the kink in the spectrum at visible wavelengths (related to the abundance and particle size of weathered ferric iron minerals) is shown in false color. Blue rocks are the least weathered, red soils are most weathered, and green soils and rock faces show an intermediate state of weathering. The Atmospheric Structure Instrument/Meteorology Package (ASI/MET) is the mast and windsocks at left. The metallic object at lower right is a portion of the lander's low-gain antenna.

Mars Pathfinder is the second in NASA's Discovery program of low-cost spacecraft with highly focused science goals. The Jet Propulsion Laboratory, Pasadena, CA, developed and manages the Mars Pathfinder mission for NASA's Office of Space Science, Washington, D.C. The Imager for Mars Pathfinder (IMP) was developed by the University of Arizona Lunar and Planetary Laboratory under contract to JPL. Peter Smith is the Principal Investigator. JPL is an operating division of the California Institute of Technology (Caltech).

Photojournal note: Sojourner spent 83 days of a planned seven-day mission exploring the Martian terrain, acquiring images, and taking chemical, atmospheric and other measurements. The final data transmission received from Pathfinder was at 10:23 UTC on September 27, 1997. Although mission managers tried to restore full communications during the following five months, the successful mission was terminated on March 10, 1998.
