Protoplanetary Disk XUE 1 (MIRI Emission Spectrum: 13.3–15.5 microns)

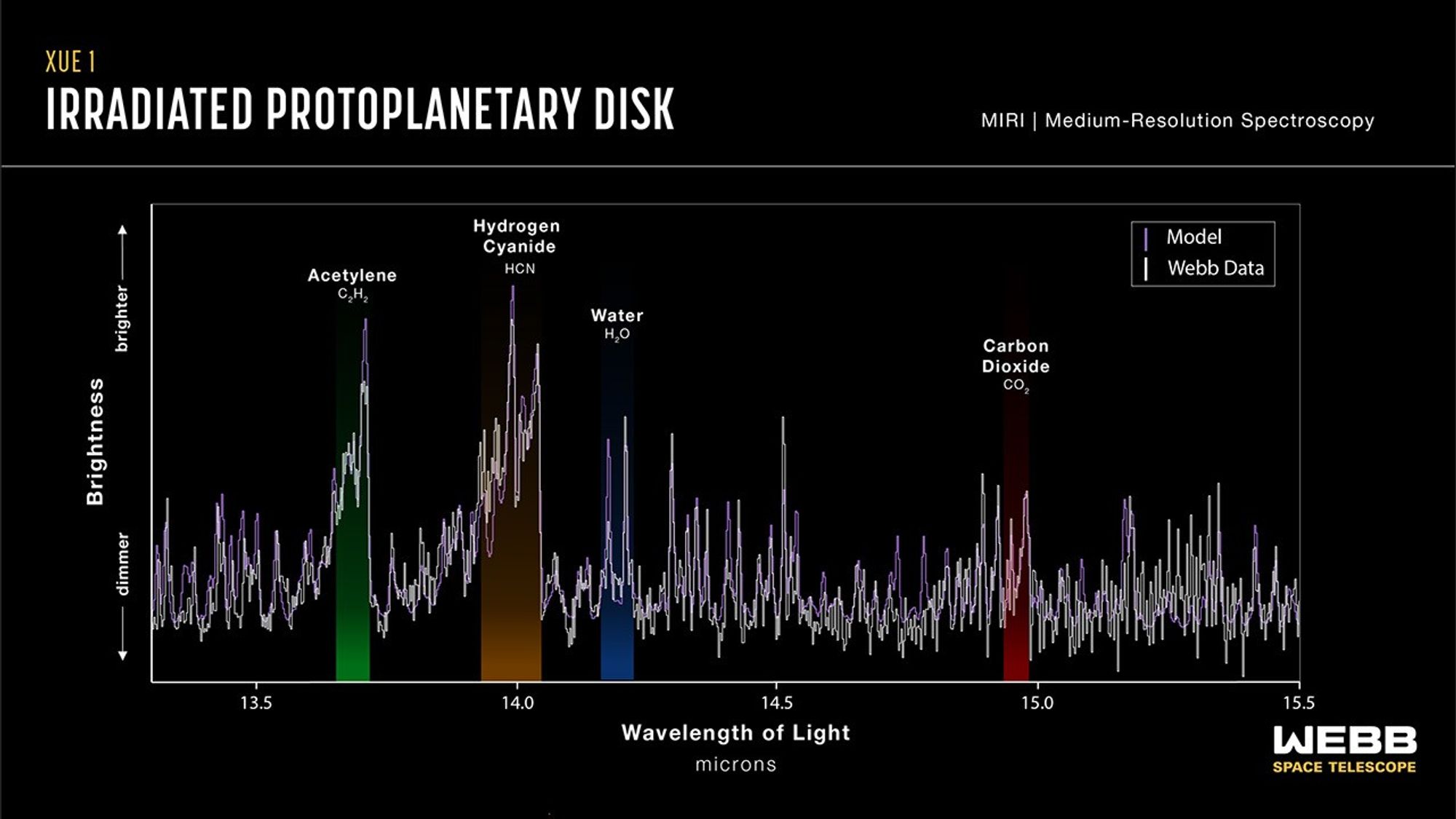

Graphic titled “XUE 1 Irradiated Protoplanetary Disk, MIRI Medium -Resolution Spectroscopy” shows a graph of brightness versus wavelength from 13.3 to 15.5 microns, with acetylene, hydrogen cyanide, water, and carbon dioxide peaks highlighted.

This graphic presents some of the first results from the eXtreme UV Environments (XUE) James Webb Space Telescope program. Astronomers focused on rocky-planet-forming regions of disks in the Lobster Nebula using Webb’s Medium Resolution Spectrometer (MRS) of the Mid-Infrared Instrument (MIRI). This first result focuses on the protoplanetary disk termed XUE 1, which is located in the star cluster Pismis 24.

The inner disk around XUE 1 revealed signatures of water (highlighted here in blue and centered around 14.2 microns), as well as acetylene (C2H2, highlighted in green; centered around 13.7 microns), hydrogen cyanide (HCN, highlighted in brown; centered around 14.0 microns), and carbon dioxide (CO2, highlighted in red; centered around 14.95 microns). As indicated, some of the emission detected was weaker than some of the predicted models, which might imply a small outer disk radius.

  • Release Date
    November 30, 2023
  • Science Release
    Webb Study Reveals Rocky Planets Can Form in Extreme Environments
    Read the release
  • Credit
    Illustration: NASA, ESA, CSA, María Claudia Ramírez-Tannus (MPIA), Joseph Olmsted (STScI)
