Mars Global Surveyor

Mars Global Surveyor

Occurred 17 years ago




Nov. 7, 1996



Mission End

Nov. 2, 2006

Mapped the Red Planet from a low polar orbit, studying the Martian topography, gravity, magnetic fields, thermal properties, surface composition, atmosphere, and daily and seasonal weather patterns. When battery failure silenced it in 2006, it was the longest-running Mars mission.

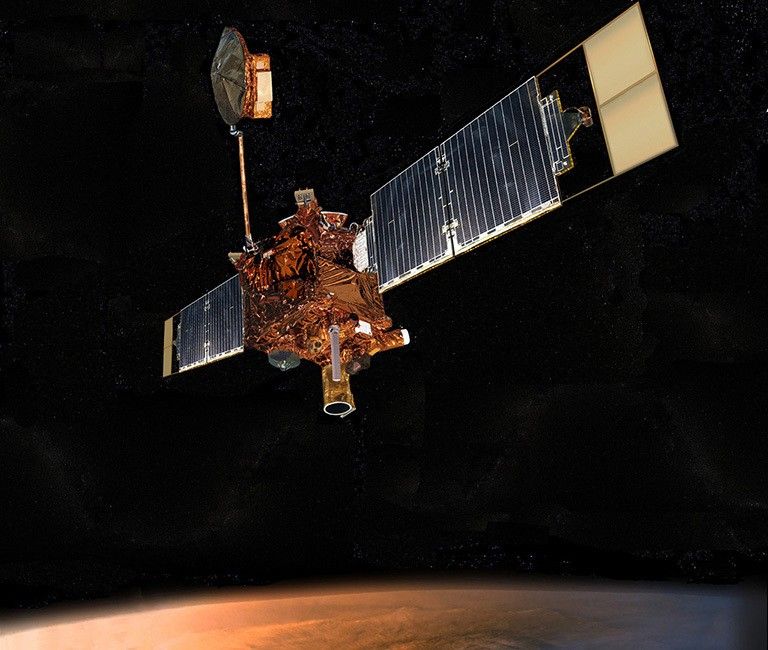

Illustration of spacecraft over Mars.
An illustration of NASA's Mars Global Surveyor at Mars.
Credit: NASA

What was Mars Global Surveyor?

NASA's Mars Global Surveyor spent nine years in orbit above the Red Planet, setting a longevity record later broken by NASA's Mars Odyssey.

  • The spacecraft pioneered the use of aerobraking at Mars, using a series of dips into the planet's atmosphere to slow the spacecraft and refine its orbit.
  • Mars Global Surveyor sent more than 240,000 images to Earth. It scouted landing sites for the Spirit, Opportunity and Curiosity rovers as well as the Phoenix lander.
  • It also served as a communications relay for rovers on the surface.
  • The mission ended in November 2006.

United States of America (USA)
Mars Orbit
Spacecraft Mass
2,272 pounds (1,030.5 kilograms)
Mission Design and Management
NASA / JPL-Caltech
Launch Vehicle
Delta 7925 (no. D239)
Launch Date and Time
Nov. 7, 1996 / 17:00:49 UT
Launch Site
Cape Canaveral, Fla. / Launch Complex 17A
Scientific Instruments
1. Mars Orbital Camera (MOC)
2. Mars Orbital Laser Altimeter (MOLA)
3. Thermal Emission Spectrometer (TES)
4. Magnetometer/Electron Reflectometer (MAG/ER)
5. Radio Science Experiment (RS)
6. Mars Relay Antenna (MR)


  • Mars Global Surveyor was the first spacecraft to use aerobraking to enter orbit at Mars.

Key Dates

Nov. 7, 1996: Launch

Sept. 12, 1997: Entered initial orbit at Mars

Sept. 17, 1997, to Feb. 19, 1999: Aerobraking used to refine spacecraft's orbit

March 9, 1999: Mapping mission formally began

Nov. 2, 2006: Last contact; mission ends

In Depth: Mars Global Surveyor

Mars Global Surveyor was the first spacecraft in NASA’s new Mars Surveyor Program, a new generation of American space probes to explore Mars every 26 months from 1996 to 2005.

The program was formulated in 1994 to economize costs and maximize returns by involving a single industrial partner with NASA's Jet Propulsion Laboratory (JPL) to design, build and deliver a flight-worthy vehicle for Mars every two years. (A new Mars Exploration Program was inaugurated in 2000.)

The Mars Global Surveyor spacecraft carried five instruments similar to those carried by the lost Mars Observer probe that fell silent in 1993. Among the instruments was a French-supplied radio relay experiment to serve as a downlink for future Mars landers, including the planned Russian Mars 96 mission.

After course corrections Nov. 21, 1996, and March 20, 1997, Mars Global Surveyor entered a highly elliptical orbit around Mars on Sept. 12, 1997, after engine ignition at 01:17 UT. Initial orbital parameters were about 163 × 33,570 miles (262 × 54,026 kilometers).

Commencement of its planned two-year mission was delayed because one of its two solar panels (-Y) had not fully deployed soon after launch. The solar panels were designed to act as atmospheric brakes to alter its orbit.

As a result, mission planners reconfigured the aerobraking process required to place the vehicle in its intended orbit. The modified aerobraking maneuver began Sept. 17, 1997, and lasted until October 11. A second aerobraking phase lasted from November 1997 to March 1998 and a third one began in November 1998 with the goal of reducing the high point of its orbit down to about 280 miles (450 kilometers).

The revised maneuvers were finally completed Feb. 4, 1999, with a major burn from its main engine. A subsequent firing Feb. 19 finally put Mars Global Surveyor into a near-circular polar orbit at 146 miles (235 kilometers) and March 9, 1999, its mapping mission formally began.

The orbit was Sun-synchronous, ensuring that all its images were taken by the spacecraft of the same surface features at different times under identical lighting conditions.

Despite the early problems, Mars Global Surveyor, even during its movement to its new orbit, sent back impressive data and high-resolution images of the surface of Mars. The spacecraft tracked the evolution of a dust storm, gathered information on the Martian terrain and found compelling evidence indicating the presence of liquid water at or near the surface (first announced by NASA June 22, 2000).

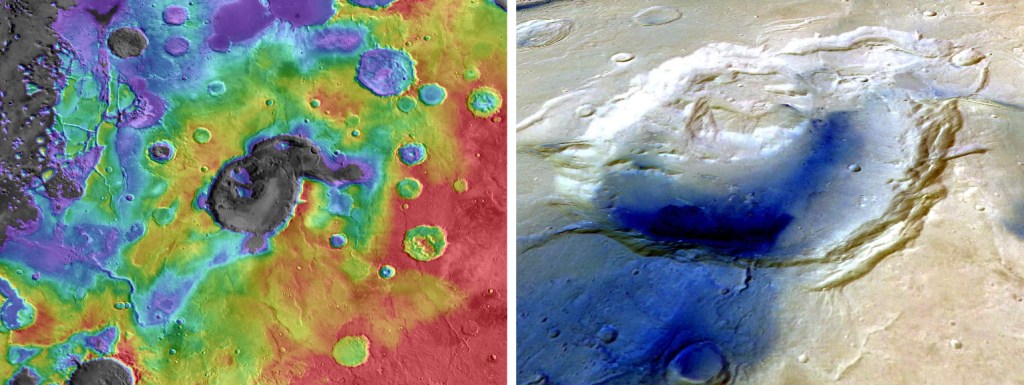

During its mission, Mars Global Surveyor also produced the first three-dimensional profiles of Mars’ North Pole using laser altimeter readings. In addition, the laser altimeter essentially mapped almost all of the planet, by firing approximately 500 billion pulses at the surface, providing topographical data that was more detailed than many places on Earth.

The spacecraft’s primary mission concluded on Feb. 1, 2001, by which time it had returned 83,000 images of Mars, more than all previous missions to Mars combined. Also on that date, Mars Global Surveyor’s mission was extended for a year, and then again Feb. 1, 2002, this time continuing 11 months.

In the early 2000s, the spacecraft supported other missions to Mars, including that of Mars Odyssey (in 2001) and the Mars Exploration Rovers (in 2004) by providing either atmospheric data or relaying telemetry back to Earth. Between 2004 and 2006 it conducted experiments simultaneously with the European Mars Express.

On Oct. 1, 2006, mission planners, based on the recommendations of a Senior Review Board, once again extended the Mars Global Surveyor’s mission by another two years. But only a month later, on Nov. 2, the spacecraft lost contact with Earth when attempting to orient a solar panel.

Although weak signals were received three days after that, NASA announced on Nov. 21, 2006, that the mission of Mars Global Surveyor was over. The final problem was probably related to a flaw in the system’s software.

Key Source

Siddiqi, Asif A. Beyond Earth: A Chronicle of Deep Space Exploration, 1958-2016. NASA History Program Office, 2018.
