Rover Environmental Monitoring Station

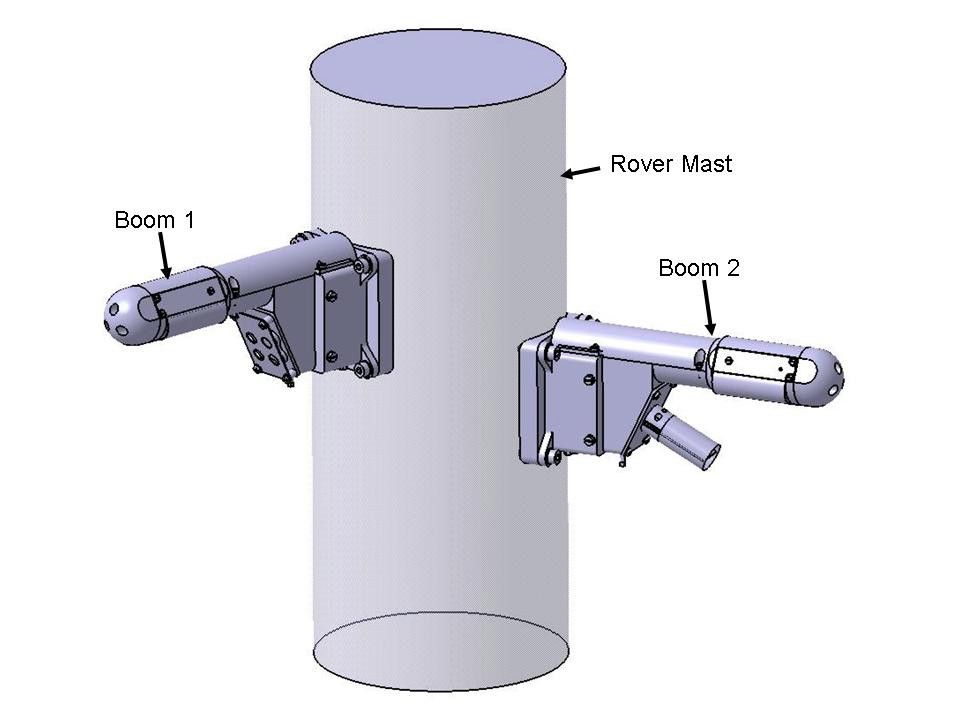

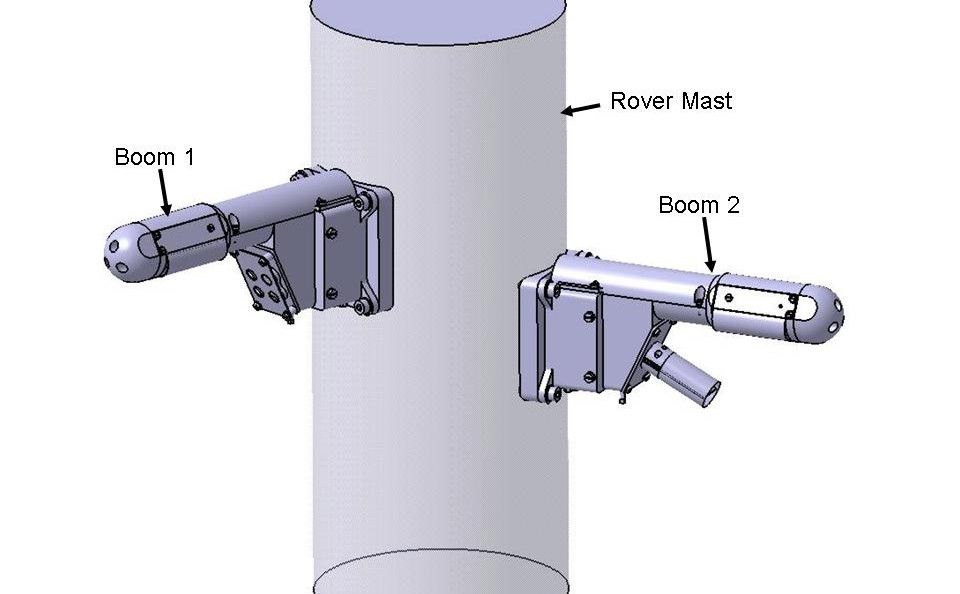

This engineering drawing show a section of the ccylindrical rover mast with two small booms extending laterally from it. The ooms are labeled Boom 1 (on the left and Boom 2 (on the right).
February 16, 2009
CreditNASA/JPL-Caltech/INTA (Instituto Nacional de Tecnica Aeroespacial)
Language
  • english

The Rover Environmental Monitoring Station will monitor atmospheric pressure, humidity, wind currents, and ultraviolet radiation from the sun.
Image credit: NASA/JPL-Caltech/INTA (Instituto Nacional de Tecnica Aeroespacial)
