Seventeen Cameras on Curiosity

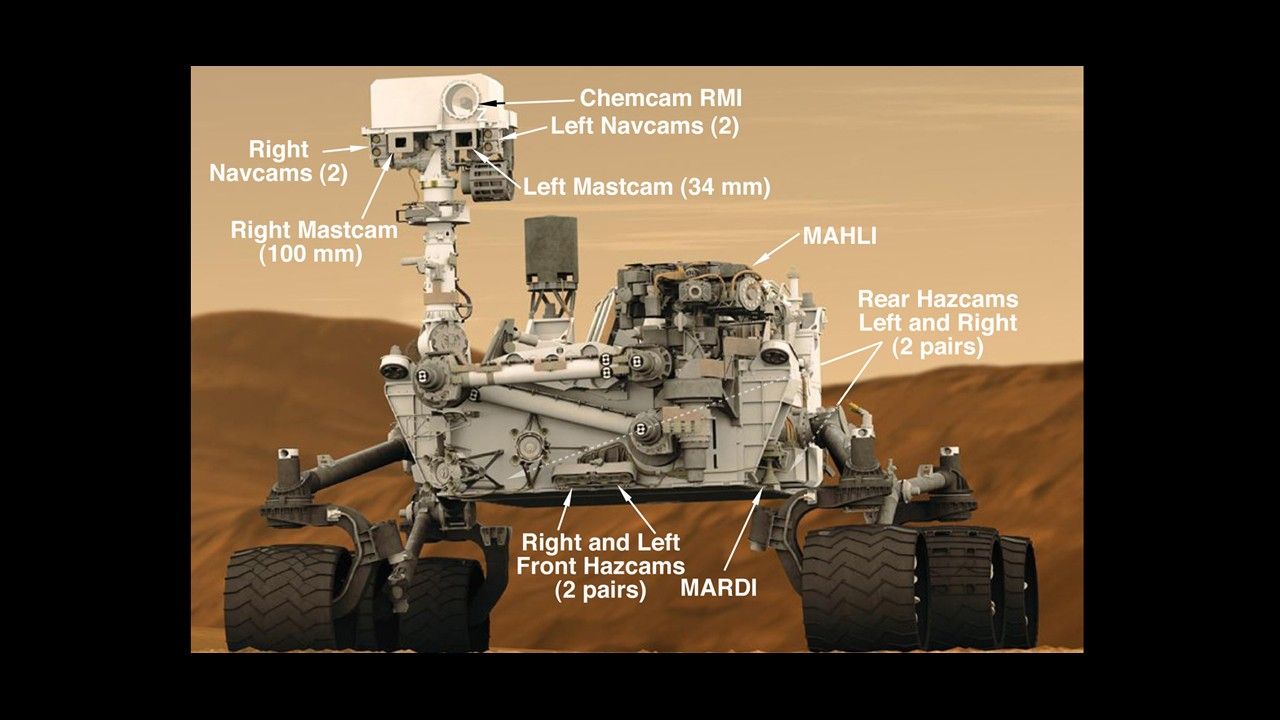

This graphic shows the locations of the cameras on NASA's Curiosity rover. The rover's mast features seven cameras: the Remote Micro Imager, part of the Chemistry and Camera suite; four black-and-white Navigation Cameras (two on the left and two on the right) and two color Mast Cameras (Mastcams). The left Mastcam has a 34-millimeter lens and the right Mastcam has a 100-millimeter lens.

There is one camera on the end of a robotic arm that is stowed in this graphic; it is called the Mars Hand Lens Imager (MAHLI).

There are nine cameras hard-mounted to the rover: two pairs of black-and-white Hazard Avoidance Cameras in the front, another two pair mounted to the rear of the rover, (dashed arrows in the graphic) and the color Mars Descent Imager (MARDI).
