Signature of Hematite in ‘Confidence Hills’ Martian Rock (Labeled)

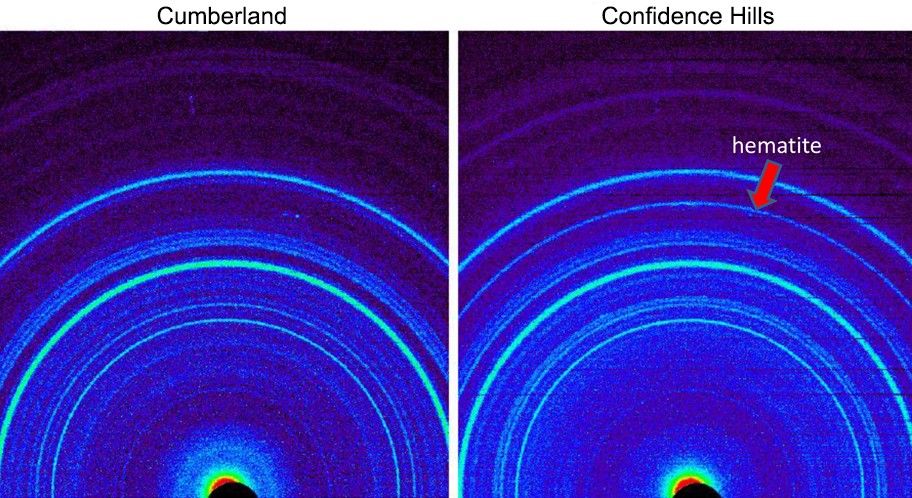

This side-by-side comparison shows the X-ray diffraction patterns of two different samples collected from rocks on Mars by NASA's Curiosity rover. The images present data obtained by Curiosity's Chemistry and Mineralogy instrument (CheMin).
November 4, 2014
CreditNASA/JPL-Caltech
Language
  • english

This side-by-side comparison shows the X-ray diffraction patterns of two different samples collected from rocks on Mars by NASA's Curiosity rover. The images present data obtained by Curiosity's Chemistry and Mineralogy instrument (CheMin).

At left is a pattern of data from analysis of the "Cumberland" rock target in the "Yellowknife Bay" area investigated by Curiosity in 2013. The pattern at right is from the "Confidence Hills" target that was the first rock drilled after Curiosity reached the base of Mount Sharp in September 2014. A label in the right image points out evidence for the mineral hematite in this rock. (An unannotated view is also available.)

Hematite is an iron-oxide mineral. The rocks examined at Yellowknife Bay also contained iron oxides, predominantly magnetite. A much higher ratio of hematite to magnetite at Confidence Hills indicates that the ancient environmental conditions recorded in that rock involved more oxidation than the conditions recorded in the Yellowknife Bay rocks.

NASA's Jet Propulsion Laboratory, a division of Caltech in Pasadena, manages the Mars Science Laboratory project for NASA's Science Mission Directorate, Washington, and built Curiosity and CheMin.

For more information about Curiosity and its mission, visit http://www.nasa.gov/msl and http://mars.nasa.gov/msl.
