Faulted Layered Bedrock in Noctis Labyrinthus

The rock layers in this image were likely horizontal when the materials were first deposited, but are now tilted to high angles, approaching 90 degrees.
April 7, 2010
CreditNASA/JPL-Caltech/University of Arizona
Language
  • english

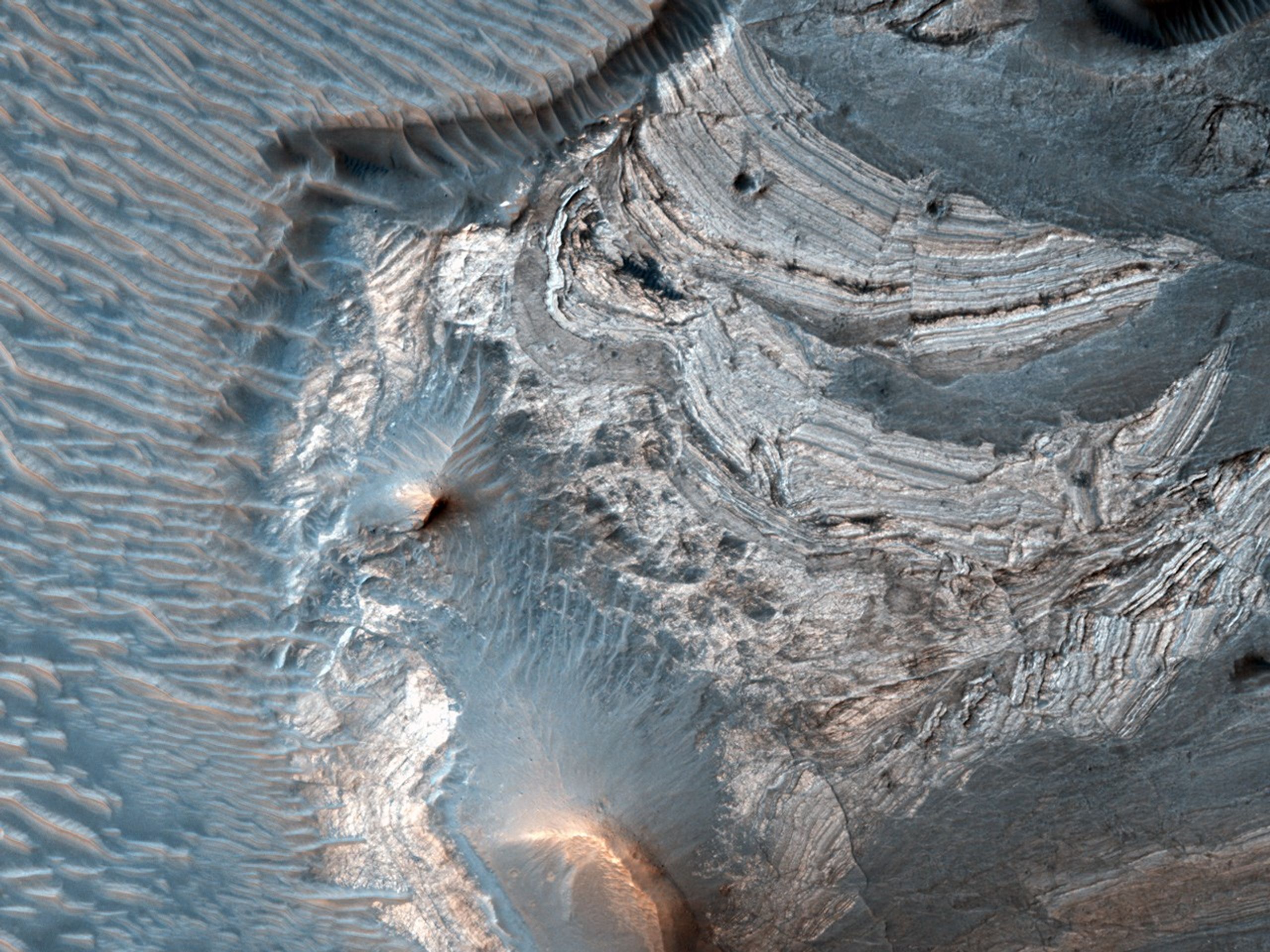

A portion of this image shows layered bedrock that has been faulted and tilted.

The rock layers in this image were likely horizontal when the materials were first deposited, but are now tilted to high angles, approaching 90 degrees, so we get a good cross-sectional view from a bird's-eye view.

The layers have distinctive colors, textures, and thicknesses, so it is easy to correlate layers from place to place. That makes it easy to measure the offset along the many faults breaking the layers.
