Tendril-producing Geysers on Enceladus’ South Polar Terrain

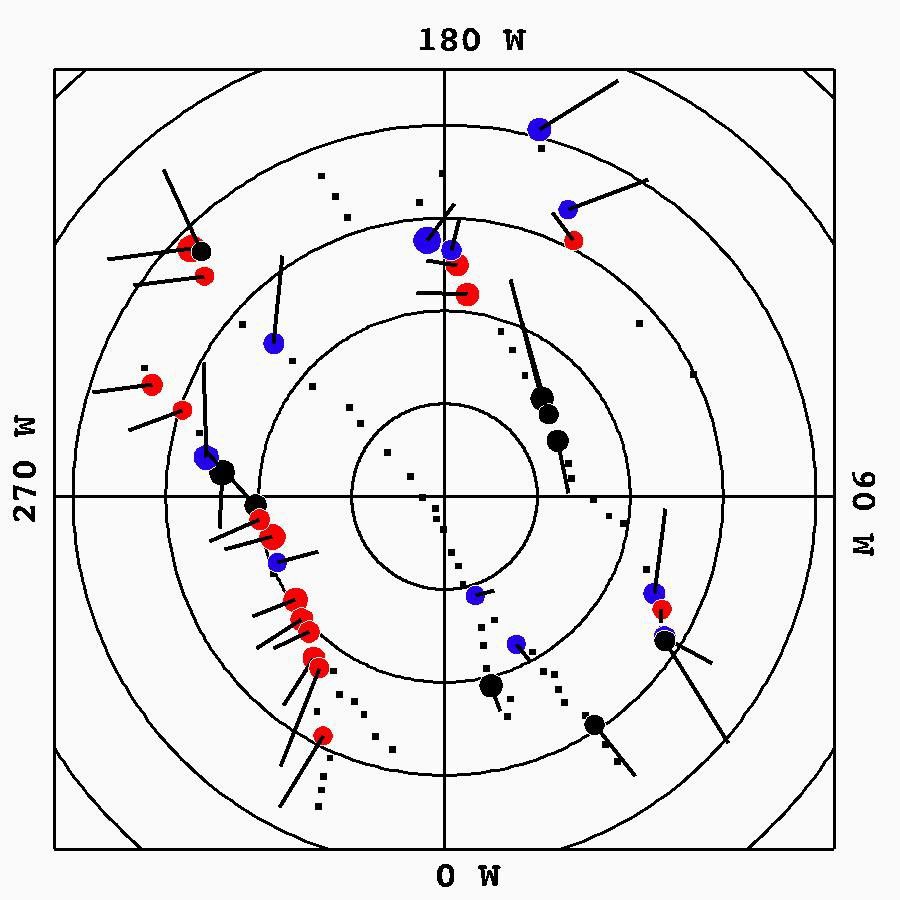

This graphic plots the source locations of the geysers scientists have located on Enceladus' south polar terrain. The 36 most active geyser, or jet, sources are marked by circles and color coded by the behavior of the grains erupting from the geysers. Other, less active sources are marked by small black squares.

Red sources produce structures that lead Enceladus in its orbit, blue sources produce particles that trail the moon, and black sources produce both. Circle size is proportional to the source activity level. Latitudes are plotted as concentric circles centered on the south pole at 5-degree intervals.

Lines emanating from sources represent the projection of a source's central emission vector onto Saturn's ringplane -- that is, the direction of a source's emission projected onto a plane passing through Saturn's equator. In this reference frame, Saturn is down and Enceladus' orbital motion to the right.
