Compass Image for White Dwarf Star LAWD 37

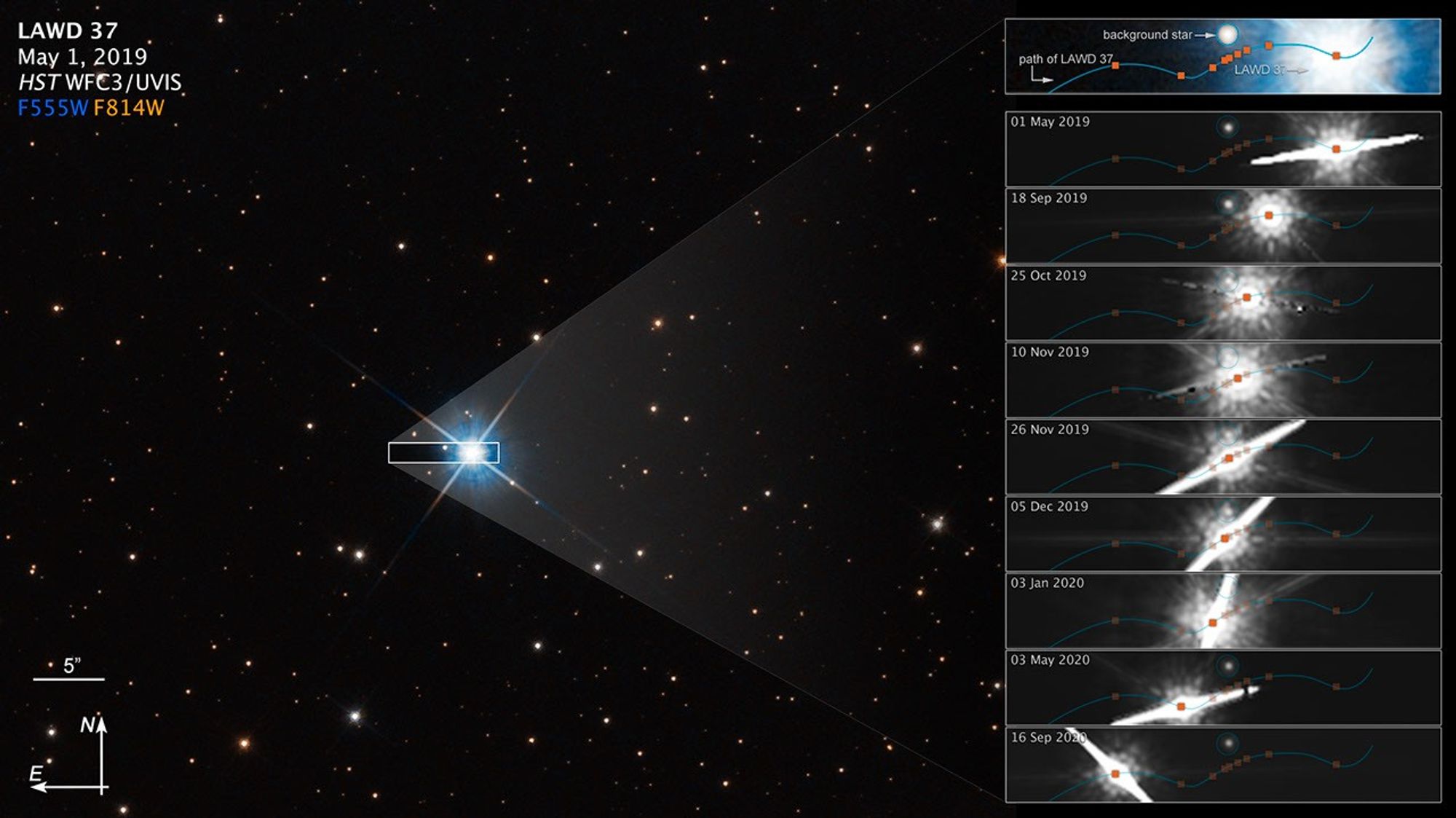

Image titled “LAWD 37; May 1, 2019; HST WFC3/UVIS” with a color key, a scale bar, and compass arrows. The image shows a bright blue-white star with nine zoom-ins showing observations of the star on nine different days, and one summary zoom-in showing the path of the star relative to a background star over that span of time. The zoom-ins show the position and light pattern of the star LAWD 37 changing over time. The color key shows which Hubble WFC3 filters were used to create the image and which color is assigned to each filter. Filter F555W is in blue and F814W is in orange. The scale bar is labeled 5 arcseconds, and is about the same as the diameter of the glow surrounding the bright star. The zoom-in boxes span about 1.5 times the length of the scale bar, or about 7.5 arcseconds. The compass arrows indicate the orientation of the image on the sky. The north arrow points straight up. The east arrow points straight left.

This graphic shows how microlensing was used to measure the mass of a white dwarf star.

The dwarf, called LAWD 37, is a burned-out star in the center of this Hubble Space Telescope image. Though its nuclear fusion furnace has shut down, trapped heat is sizzling on the surface at 180,000 degrees Fahrenheit, causing the stellar remnant to glow fiercely.

The inset boxes at right plot how the dwarf passed in front of a background star in 2019. The wavy blue line traces the dwarf's apparent motion across the sky as seen from Earth. Though the dwarf is following a straight trajectory, the motion of Earth orbiting the Sun imparts an apparent sinusoidal offset due to parallax. (The star is only 15 light-years away, and therefore is moving at a faster rate against the stellar background.)

As it passed by the fainter background star, the dwarf's gravitational field warped space (as Einstein's theory of general relativity predicted a century ago). And this deflection was precisely measured by Hubble's extraordinary resolution. The dwarf's offset position is colored orange.

The amount of deflection yields a mass for the white dwarf of 56 percent our Sun's mass, and this provides insights into theories of the structure and composition of white dwarfs. This is the first time that astronomers directly measured the mass of a single, isolated white dwarf star, thanks to a "funhouse mirror" trick of nature.

The white dwarf has a "spike" because it is so bright the light "bled" into the Hubble camera's CCD detector. This interfered with one of the observing dates for measuring that background star's position on the sky.

The compass graphic points to the object's orientation on the celestial sphere. North points to the north celestial pole which is not a fixed point in the sky, but it currently lies near the star, Polaris, in the circumpolar constellation Ursa Minor. Celestial coordinates are analogous to a terrestrial map, though east and west are transposed because we are looking up rather than down.

About the Object

  • R.A. Position
    R.A. PositionRight ascension – analogous to longitude – is one component of an object's position.
    11:45:42.9205
  • Dec. Position
    Dec. PositionDeclination – analogous to latitude – is one component of an object's position.
    -64:50:29.459
  • Constellation
    ConstellationOne of 88 recognized regions of the celestial sphere in which the object appears.
    Musca
  • Distance
    DistanceThe physical distance from Earth to the astronomical object. Distances within our solar system are usually measured in Astronomical Units (AU). Distances between stars are usually measured in light-years. Interstellar distances can also be measured in parsecs.
    About 15 light-years
  • Dimensions
    DimensionsThe physical size of the object or the apparent angle it subtends on the sky.
    Image is 1.2 arcmin across (about 0.005 light-years)

About the Data

  • Data Description
    Data DescriptionProposal: A description of the observations, their scientific justification, and the links to the data available in the science archive.
    Science Team: The astronomers who planned the observations and analyzed the data. "PI" refers to the Principal Investigator.

    This image was created with Hubble data from proposals: 15705 , 15961 , and 16251 (K. Sahu).

  • Instrument
    InstrumentThe science instrument used to produce the data.
    WFC3/UVIS
  • Exposure Dates
    Exposure DatesThe date(s) that the telescope made its observations and the total exposure time.
    9 pointings between May 2019 and Sep 2020
  • Filters
    FiltersThe camera filters that were used in the science observations.
    F555W, F814W
  • Object Name
    Object NameA name or catalog number that astronomers use to identify an astronomical object.
    LAWD 37 (LP 145-141)
  • Object Description
    Object DescriptionThe type of astronomical object.
    Isolated White Dwarf
  • Release Date
    February 2, 2023
  • Science Release
    For the First Time Hubble Directly Measures Mass of a Lone White Dwarf
    Read the release
  • Credits
    NASA, ESA, Peter McGill (UC Santa Cruz, IoA), Kailash Sahu (STScI); Image Processing: Joseph DePasquale (STScI)

Downloads

  • Full Res (For Display), 2571 × 1446
    png (4.18 MB)
  • Full Res (For Print), 2571 × 1446
    tif (4.38 MB)
  • 2000 × 1125
    png (2.49 MB)
Image titled “LAWD 37; May 1, 2019; HST WFC3/UVIS” with a color key, a scale bar, and compass arrows. The image shows a bright blue-white star with nine zoom-ins showing observations of the star on nine different days, and one summary zoom-in showing the path of the star relative to a background star over that span of time. The zoom-ins show the position and light pattern of the star LAWD 37 changing over time. The color key shows which Hubble WFC3 filters were used to create the image and which color is assigned to each filter. Filter F555W is in blue and F814W is in orange. The scale bar is labeled 5 arcseconds, and is about the same as the diameter of the glow surrounding the bright star. The zoom-in boxes span about 1.5 times the length of the scale bar, or about 7.5 arcseconds. The compass arrows indicate the orientation of the image on the sky. The north arrow points straight up. The east arrow points straight left.
Color Info
Color InfoA brief description of the methods used to convert telescope data into the color image being presented.

These images are a composite of separate exposures acquired by the Hubble Space Telescope using the WFC3/UVIS instrument. Several filters were used to sample specific wavelength ranges. The color results from assigning different hues (colors) to each monochromatic (grayscale) image associated with an individual filter. In this case, the assigned colors are:   Cyan: F555W, Orange: F814W
