Butterfly Emerges from Stellar Demise in Planetary Nebula NGC 6302
This celestial object looks like a delicate butterfly. But it is far from serene.
What resemble dainty butterfly wings are actually roiling cauldrons of gas heated to more than 36,000 degrees Fahrenheit. The gas is tearing across space at more than 600,000 miles an hour – fast enough to travel from Earth to the Moon in 24 minutes!
A dying star that was once about five times the mass of the Sun is at the center of this fury. It has ejected its envelope of gases and is now unleashing a stream of ultraviolet radiation that is making the cast-off material glow. This object is an example of a planetary nebula, so-named because many of them have a round appearance resembling that of a planet when viewed through a small telescope.
The Wide Field Camera 3 (WFC3), a new camera aboard NASA's Hubble Space Telescope, snapped this image of the planetary nebula, catalogued as NGC 6302, but more popularly called the Bug Nebula or the Butterfly Nebula. WFC3 was installed by NASA astronauts in May 2009, during the servicing mission to upgrade and repair the 19-year-old Hubble telescope.
NGC 6302 lies within our Milky Way galaxy, roughly 3,800 light-years away in the constellation Scorpius. The glowing gas is the star's outer layers, expelled over about 2,200 years. The "butterfly" stretches for more than two light-years, which is about half the distance from the Sun to the nearest star, Alpha Centauri.
The central star itself cannot be seen, because it is hidden within a doughnut-shaped ring of dust, which appears as a dark band pinching the nebula in the center. The thick dust belt constricts the star's outflow, creating the classic "bipolar" or hourglass shape displayed by some planetary nebulae.
The star's surface temperature is estimated to be about 400,000 degrees Fahrenheit, making it one of the hottest known stars in our galaxy. Spectroscopic observations made with ground-based telescopes show that the gas is roughly 36,000 degrees Fahrenheit, which is unusually hot compared to a typical planetary nebula.
The WFC3 image reveals a complex history of ejections from the star. The star first evolved into a huge red-giant star, with a diameter of about 1,000 times that of our Sun. It then lost its extended outer layers. Some of this gas was cast off from its equator at a relatively slow speed, perhaps as low as 20,000 miles an hour, creating the doughnut-shaped ring. Other gas was ejected perpendicular to the ring at higher speeds, producing the elongated "wings" of the butterfly-shaped structure. Later, as the central star heated up, a much faster stellar wind, a stream of charged particles traveling at more than 2 million miles an hour, plowed through the existing wing-shaped structure, further modifying its shape.
The image also shows numerous finger-like projections pointing back to the star, which may mark denser blobs in the outflow that have resisted the pressure from the stellar wind.
The nebula's reddish outer edges are largely due to light emitted by nitrogen, which marks the coolest gas visible in the picture. WFC3 is equipped with a wide variety of filters that isolate light emitted by various chemical elements, allowing astronomers to infer properties of the nebular gas, such as its temperature, density, and composition.
The white-colored regions are areas where light is emitted by sulfur. These are regions where fast-moving gas overtakes and collides with slow-moving gas that left the star at an earlier time, producing shock waves in the gas (the bright white edges on the sides facing the central star). The white blob with the crisp edge at upper right is an example of one of those shock waves.
NGC 6302 was imaged on July 27, 2009, with Hubble's Wide Field Camera 3 in ultraviolet and visible light. Filters that isolate emissions from oxygen, helium, hydrogen, nitrogen, and sulfur from the planetary nebula were used to create this composite image.
These Hubble observations of the planetary nebula NGC 6302 are part of the Hubble Servicing Mission 4 Early Release Observations.
About the Object
- R.A. PositionR.A. PositionRight ascension – analogous to longitude – is one component of an object's position.17h 13m 43.29s
- Dec. PositionDec. PositionDeclination – analogous to latitude – is one component of an object's position.-37° 6' 9.99"
- ConstellationConstellationOne of 88 recognized regions of the celestial sphere in which the object appears.Scorpius
- DistanceDistanceThe physical distance from Earth to the astronomical object. Distances within our solar system are usually measured in Astronomical Units (AU). Distances between stars are usually measured in light-years. Interstellar distances can also be measured in parsecs.3,800 light-years (1,200 parsecs)
- DimensionsDimensionsThe physical size of the object or the apparent angle it subtends on the sky.This image is 2.4 arcminutes (2.7 light-years or 0.8 parsecs) wide.
About the Data
- Data DescriptionData DescriptionProposal: A description of the observations, their scientific justification, and the links to the data available in the science archive.
Science Team: The astronomers who planned the observations and analyzed the data. "PI" refers to the Principal Investigator.The Hubble images were created from data from proposal 11504: K. Noll and H. Bond (STScI) and B. Balick (University of Washington). Acknowledgments for NGC 6302 Observers: K. Noll and H. Bond (STScI) and B. Balick (University of Washington) Data Analysis: H. Bushouse, J. Anderson, and M. Mutchler (STScI) Image Composition: Z. Levay and L. Frattare (STScI) Text: L. Frattare, D. Weaver, and R. Villard (STScI) Illustrations: Z. Levay (STScI) Science Consultants: M. Livio and H. Bond (STScI) - InstrumentInstrumentThe science instrument used to produce the data.HST>WFC3/UVIS
- Exposure DatesExposure DatesThe date(s) that the telescope made its observations and the total exposure time.July 27, 2009, Exposure Time: 6.5 hours
- FiltersFiltersThe camera filters that were used in the science observations.F373N ([O II]), F469N (He II), F502N ([O III]), F656N (H-alpha), F658N ([N II]), and F673N ([S II])
- Object NameObject NameA name or catalog number that astronomers use to identify an astronomical object.NGC 6302, Butterfly Nebula, Bug Nebula
- Object DescriptionObject DescriptionThe type of astronomical object.Planetary Nebula
- Release DateSeptember 9, 2009
- Science ReleaseHubble Opens New Eyes on the Universe
- Credits
The image is a composite of separate exposures made by the WFC3 instrument on the Hubble Space Telescope. Six filters were used to sample narrow wavelength ranges. The color results from assigning different hues (colors) to each monochromatic image. In this case, the assigned colors are: White: F673N ([S II]) Orange: F658N ([N II]) Brown: F656N (H-alpha) Cyan: F502N ([O III]) Blue: F469N (He II) Purple: F373N ([O II])
Related Images & Videos
Hubble Servicing Mission 4 Early Release Observations
These four images are among the first observations made by the new Wide Field Camera 3 aboard the upgraded NASA Hubble Space Telescope. The image at top left shows NGC 6302, a butterfly-shaped nebula surrounding a dying star. At top right is a picture of a clash among members of...
Stars Bursting to Life in the Chaotic Carina Nebula
These two images of a huge pillar of star birth demonstrate how observations taken in visible and in infrared light by NASA's Hubble Space Telescope reveal dramatically different and complementary views of an object. The pictures demonstrate one example of the broad wavelength...
Collision Leaves Giant Jupiter Bruised
This Hubble picture, taken on July 23, is the first full-disk natural-color image of Jupiter made with Hubble's new camera, the Wide Field Camera 3 (WFC3). It is the sharpest visible-light picture of Jupiter since the New Horizons spacecraft flew by that planet in 2007. Each...
Probing the Last Gasps of the Doomed Star Eta Carinae
The signature balloon-shaped clouds of gas blown from a pair of massive stars called Eta Carinae have tantalized astronomers for decades. Eta Carinae has a volatile temperament, prone to violent outbursts over the past 200 years. Observations by the newly repaired Space...
Gravitational Lensing in Galaxy Cluster Abell 370
Hubble Space Telescope's newly repaired Advanced Camera for Surveys (ACS) has peered nearly 5 billion light-years away to resolve intricate details in the galaxy cluster Abell 370. Abell 370 is one of the very first galaxy clusters where astronomers observed the phenomenon of...

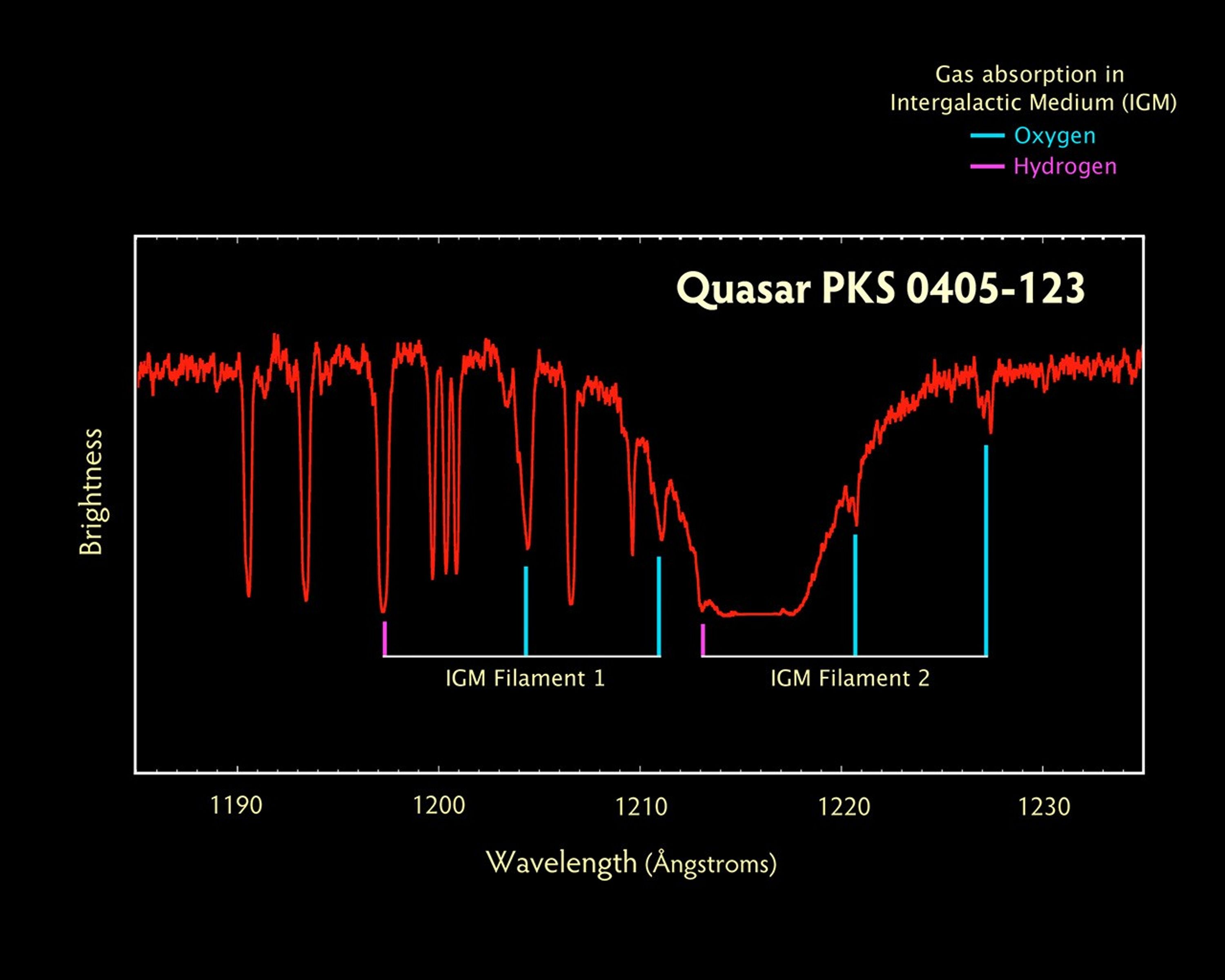

Fingerprinting the Distant Universe Using the Light from Quasar PKS 0405-123
Using a distant quasar as a cosmic flashlight, a new instrument aboard NASA's Hubble Space Telescope has begun probing the invisible, skeletal structure of the universe. Called the cosmic web, it is the diffuse, faint gas located in the space between galaxies. More than half of...
Barred Spiral Galaxy NGC 6217
This is the first image of a celestial object taken with the newly repaired Advanced Camera for Surveys (ACS). The camera was restored to operation during the STS-125 servicing mission to upgrade the Hubble Space Telescope. The barred spiral galaxy NGC 6217 was photographed on...

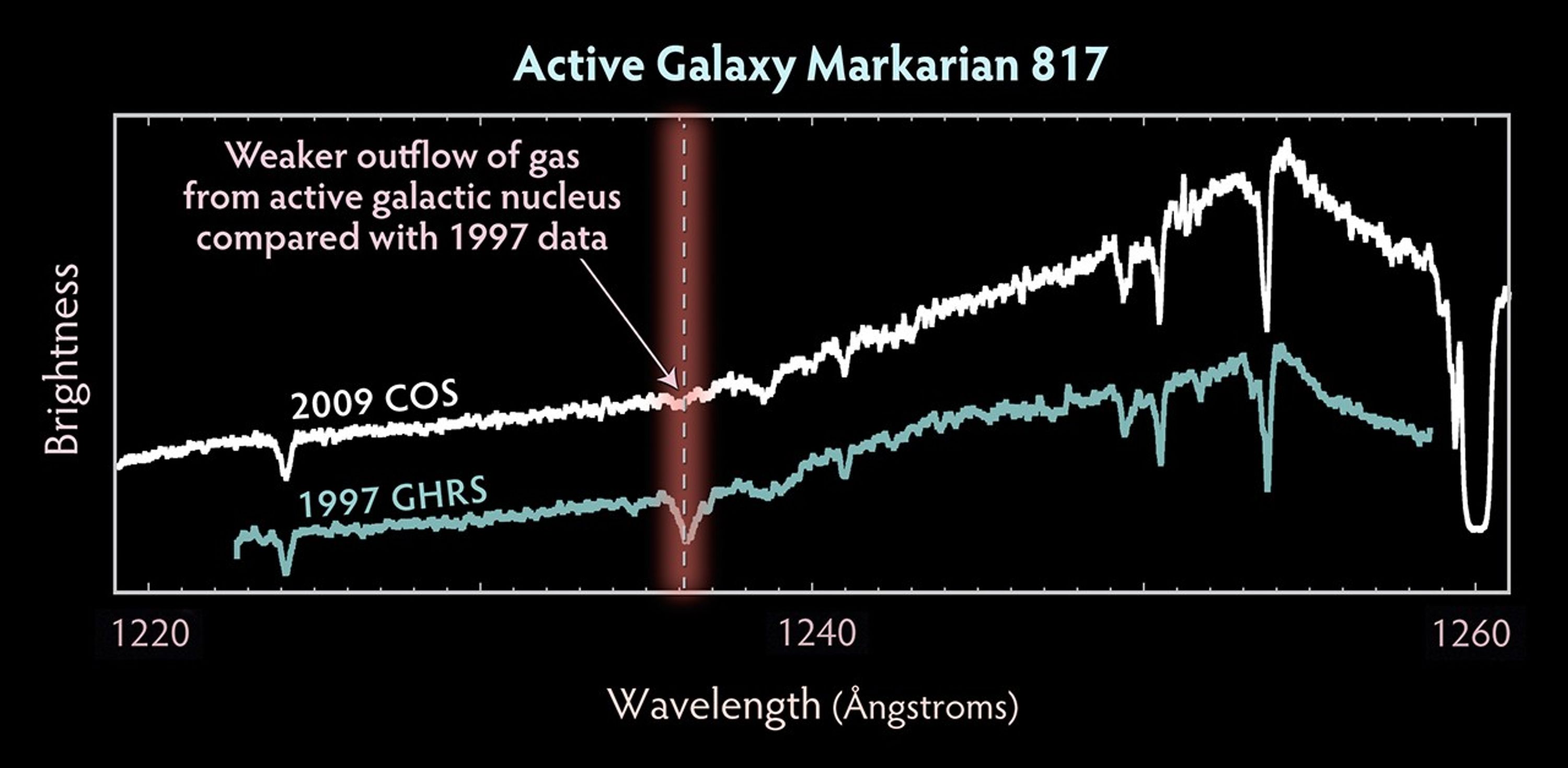

Capturing the Spectacular Outflow from Markarian 817
