Hubble Reveals the Ring Nebula’s True Shape
In this composite image, visible-light observations by NASA's Hubble Space Telescope are combined with infrared data from the ground-based Large Binocular Telescope in Arizona to assemble a dramatic view of the well-known Ring Nebula.
Called a planetary nebula, the Ring Nebula is the glowing remains of a Sun-like star.
The object is tilted toward Earth so that astronomers see the ring face-on. The Hubble observations reveal that the nebula's shape is more complicated than astronomers thought. The blue gas in the nebula's center is actually a football-shaped structure that pierces the red doughnut-shaped material. Hubble also uncovers the detailed structure of the dark, irregular knots of dense gas embedded along the inner rim of the ring. The knots look like spokes in a bicycle. The Hubble images have allowed the research team to match up the knots with the spikes of light around the bright, main ring, which are a shadow effect.
The faint, scallop-shaped material surrounding the ring was expelled by the star during the early stages of the planetary nebula formation. This outer material was imaged by the Large Binocular Telescope.
Most Sun-like stars become planetary nebulae at the end of their lives. Once a star consumes all of its hydrogen, the nuclear fuel that makes it shine, it expands to a red giant. The bloated star then expels its outer layers, exposing its hot core. Ultraviolet radiation from the core illuminates the discarded material, making it glow. The smoldering core, called a white dwarf, is the tiny white dot in the center of the Ring Nebula.
The Ring Nebula is about 2,000 light-years away in the constellation Lyra. The nebula measures roughly one light-year across.
The Hubble observations were taken Sept. 19, 2011, by the Wide Field Camera 3. The Large Binocular Telescope data were taken June 6, 2010. In the image, the blue color represents helium; the green, oxygen; and the red, hydrogen.
The Large Binocular Telescope is part of the Mount Graham International Observatory in Arizona.
About the Object
- R.A. PositionR.A. PositionRight ascension – analogous to longitude – is one component of an object's position.18h 53m 35.07s
- Dec. PositionDec. PositionDeclination – analogous to latitude – is one component of an object's position.33° 1' 45.03"
- ConstellationConstellationOne of 88 recognized regions of the celestial sphere in which the object appears.Lyra
- DistanceDistanceThe physical distance from Earth to the astronomical object. Distances within our solar system are usually measured in Astronomical Units (AU). Distances between stars are usually measured in light-years. Interstellar distances can also be measured in parsecs.2,300 light-years (700 parsecs)
About the Data
- Data DescriptionData DescriptionProposal: A description of the observations, their scientific justification, and the links to the data available in the science archive.
Science Team: The astronomers who planned the observations and analyzed the data. "PI" refers to the Principal Investigator.The image was created from Hubble data from proposal 12309: C. R. O'Dell (Vanderbilt University), G. Ferland (University of Kentucky), and W. Henney and M. Peimbert (UNAM). - InstrumentInstrumentThe science instrument used to produce the data.HST>WFC3/UVIS and Large Binocular Telescope (LBT)
- Exposure DatesExposure DatesThe date(s) that the telescope made its observations and the total exposure time.HST: September 19, 2011; LBT: June 6, 2010
- FiltersFiltersThe camera filters that were used in the science observations.WFC3/UVIS: F469N (He II), F502N ([O III]), and F658N ([N II]) LBT: H2, 2.1 microns
- Object NameObject NameA name or catalog number that astronomers use to identify an astronomical object.Ring Nebula, M57, NGC 6720
- Object DescriptionObject DescriptionThe type of astronomical object.Planetary Nebula
- Release DateMay 23, 2013
- Science ReleaseNASA’s Hubble Space Telescope Reveals the Ring Nebula’s True Shape
- Credit
Blue: F469N (He II) Green: F502N ([O III]) Red/orange: F658N ([N II]) Red: H2, 2.1 microns
Related Images & Videos
Hubble Captures a Ring
This close-up, visible-light view by NASA's Hubble Space Telescope reveals new details of the Ring Nebula. The object is tilted toward Earth so that astronomers see the ring face-on. The Hubble observations reveal that the nebula's shape is more complicated than astronomers...
Mapping the Ring Nebula's Structure

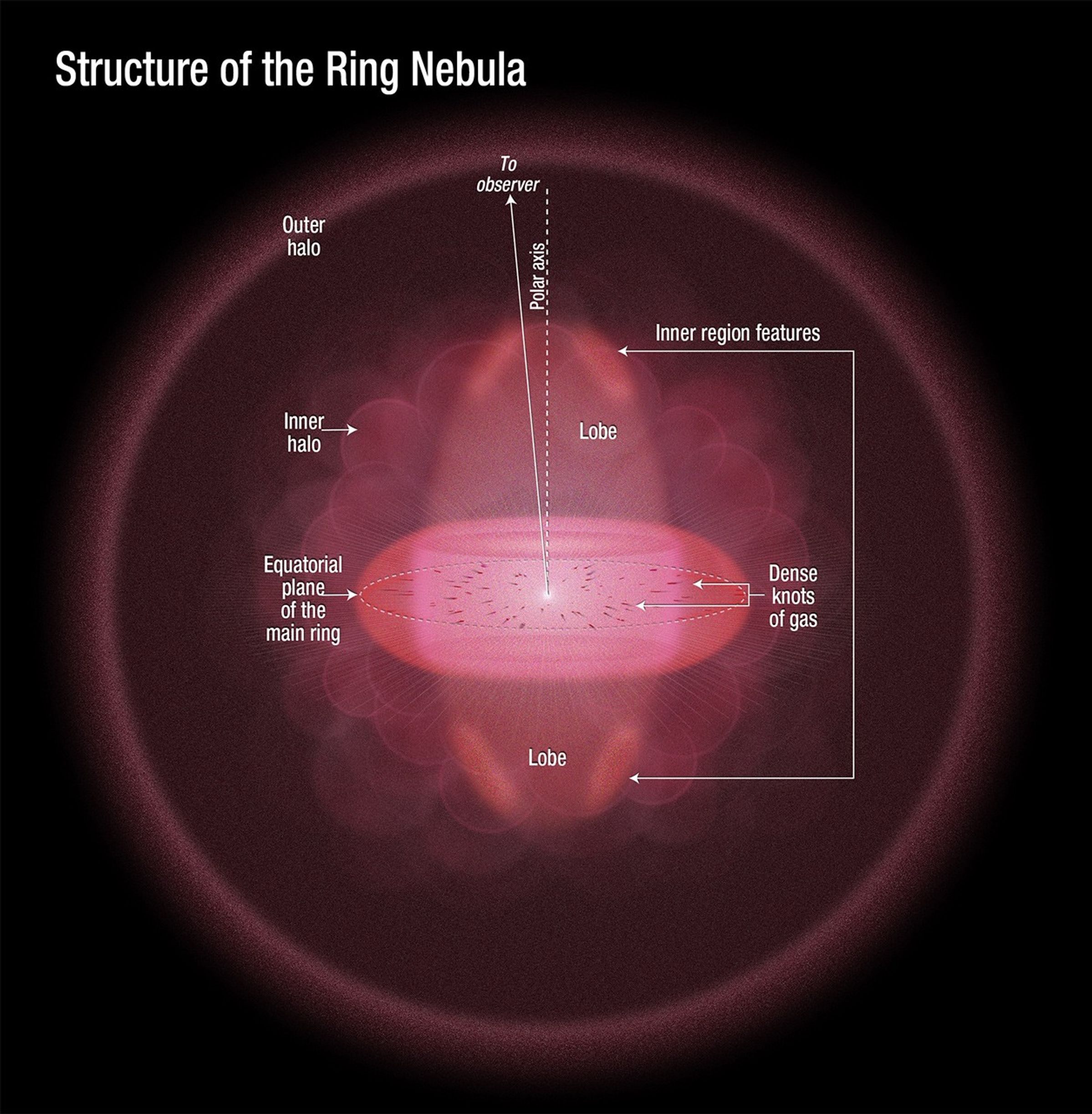

This illustration depicts a sideways view of the Ring Nebula, as deduced by astronomers using new Hubble observations. The doughnut-shaped feature in the center of the graphic is the main ring. The lobes above and below the ring comprise a football-shaped structure that pierces...
