WASP-18 b Atmospheric Spectrum from James Webb Space Telescope

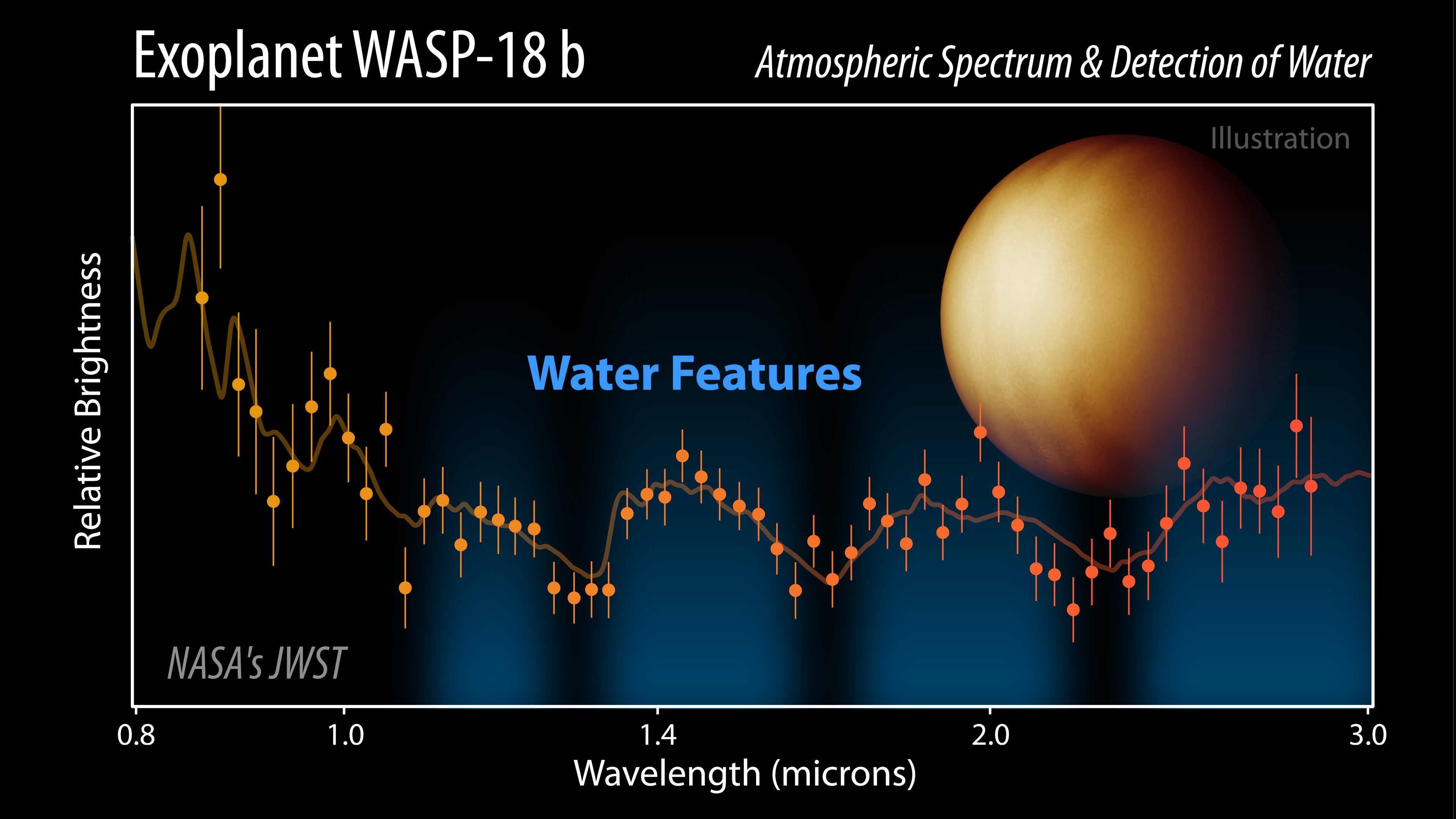

An infographic headlined, Exoplanet WASP-18 b Atmospheric Spectrum and Detection of Water shows a plot of measured emission from the planet, with water molecules, labeled water features. The vertical axis is relative brightness and the horizontal axis is wavelength in microns and it runs from .8, 1.0, 1.4, 2.0, and 3.0. The plotted data points are higher at the far left, then drops to smaller peaks and dips along the plot.
May 27, 2023
CreditNASA/JPL-Caltech (R. Hurt/IPAC)
Language
  • english

The team of researchers obtained the thermal emission spectrum of WASP-18 b by measuring the amount of light it emits over NASA’s James Webb Space Telescope’s NIRISS SOSS 0.85-2.8 um wavelength range, capturing 65% of the total energy emitted by the planet. WASP-18 b is so hot on the day side of this tidally-locked planet (the same side always faces its star, as the Moon to Earth) that water vapor molecules would break apart. The Webb Telescope directly observed water vapor on the planet in even relatively small amounts, indicating the sensitivity of the observatory.
