Hubble Measures Deflection of Starlight by a Foreground Object
How Gravity Can Bend Starlight

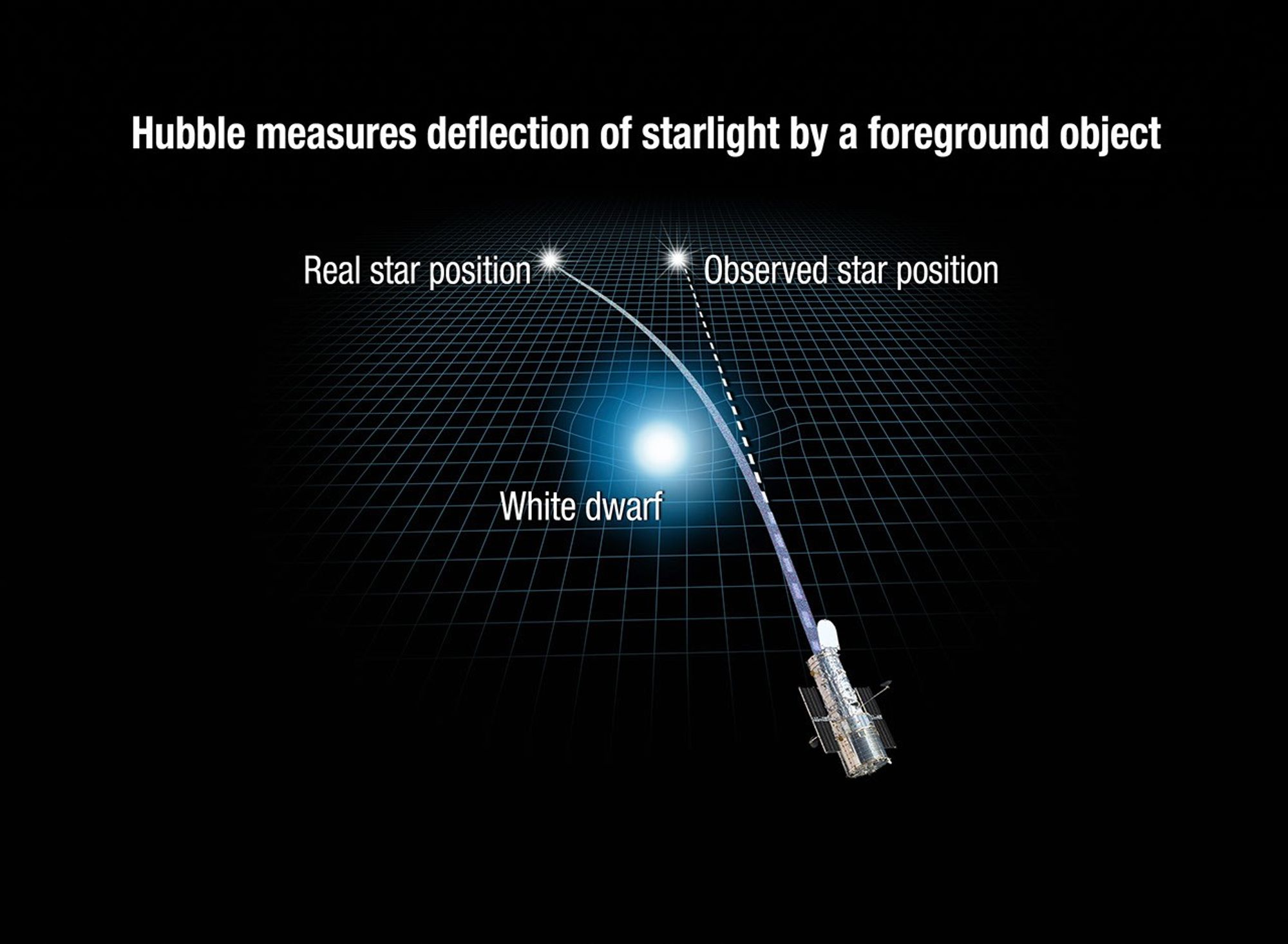

This illustration reveals how the gravity of a white dwarf star warps space and bends the light of a distant star behind it.
White dwarfs are the burned-out remnants of normal stars. The Hubble Space Telescope captured images of the dead star, called Stein 2051 B, as it passed in front of a background star. During the close alignment, Stein 2051 B deflected the starlight, which appeared offset by about 2 milliarcseconds from its actual position. This deviation is so small that it is equivalent to observing an ant crawl across the surface of a quarter from 1,500 miles away. From this measurement, astronomers calculated that the white dwarf's mass is roughly 68 percent of the sun's mass.
Stein 2051 B resides 17 light-years from Earth. The background star is about 5,000 light-years away. The white dwarf is named for its discoverer, Dutch Roman Catholic priest and astronomer Johan Stein.
About the Object
- R.A. PositionR.A. PositionRight ascension – analogous to longitude – is one component of an object's position.04h 31m 13s
- Dec. PositionDec. PositionDeclination – analogous to latitude – is one component of an object's position.+58° 58' 41"
- ConstellationConstellationOne of 88 recognized regions of the celestial sphere in which the object appears.Camelopardalis
- DistanceDistanceThe physical distance from Earth to the astronomical object. Distances within our solar system are usually measured in Astronomical Units (AU). Distances between stars are usually measured in light-years. Interstellar distances can also be measured in parsecs.17 light-years (5.5 parsecs)
- Object NameObject NameA name or catalog number that astronomers use to identify an astronomical object.Stein 2051 B, WD 0426+588
- Object DescriptionObject DescriptionThe type of astronomical object.White dwarf star
- Release DateJune 7, 2017
- Science ReleaseHubble Astronomers Develop a New Use for a Century-Old Relativity Experiment to Measure a White Dwarf’s Mass
- Credit
